TE-705 Duct Temperature Sensor
Brand: Mamac
The TE-705 provides a rugged, reliable solution for measuring average supply air temperature in large ducts or plenums.

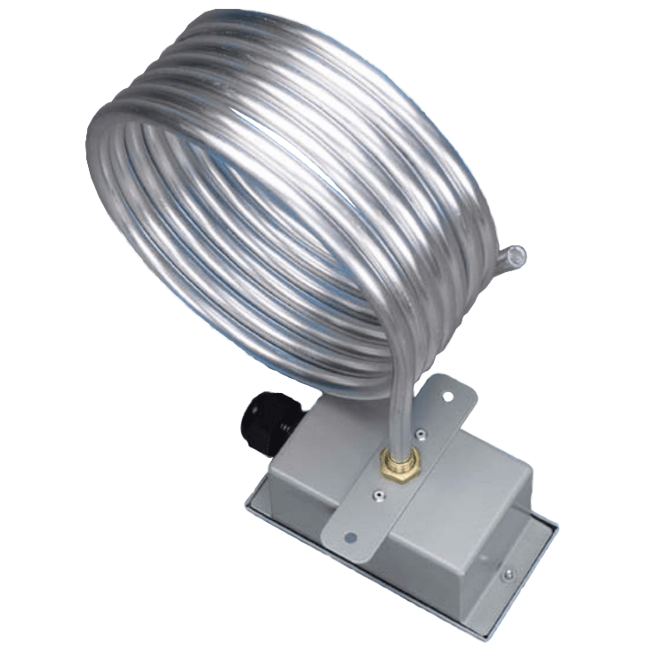

The TE-705 bendable aluminum probe averaging temperature sensor incorporates four evenly-spaced sensor modules over 6, 12 or 24 feet (1.8, 3.6 or 7.2 meter) lengths.
The sensor modules are environmentally sealed to protect against condensation.
The complete assembly acts as a single sensor and any temperature change is averaged across the sensors.
Galvanized steel or NEMA-4 (IP-65) powder coated steel enclosures are available.
Specifications
Brand
Accuracy
- ± 0.1 % at 0° C (32° F) - Platinum RTD Sensors
- ± 0.2° C (± 0.36° F) at 25° C (77° F) - Thermistor Sensors
- ± 0.28° C (± 0.5° F) at 21.1° C (70° F) - Nickel & Balco RTD Sensors
Approvals & Certifications
- CE
- EMC Conformance: EN 55022, 55024, 61000-3-3, 61000-4-2, 3, 4, 5, 6 & 11
- RoHS
Electrical Connectors
- DIN 43760
Enclosure Finish
- Baked Enamel
Enclosure, Body Material
- Steel - Galvanized
Environmental Protection
- IP30
- IP65
- NEMA 1
- NEMA 4
Flange Material
- Galvanized Steel
Materials of Construction
- Steel - Cold Rolled
Measuring Range
- 4,300 ppm - Balco RTD Sensors
- 5,000 ppm- Nickel RTD Sensors
- 6,000 ppm - Nickel RTD Sensors
Operating Temperature
- -40° to 100° C (-40° to 212° F)
Resistance
- Sensors: 100 to 100,000 ohms
Sensor, Probe Diameter
- 3/8” (9 mm) O.D.
Sensor, Probe Length
- Probe: 6 to 24 feet (1.8 to 7.2 metres)
Sensor, Probe Material
- Balco - RTD Sensors
- Nickel - RTD Sensors
- Platinum - RTD Sensors
Sensor, Probe Material
- Aluminum - Bendable
Sensor, Probe Type
- RTD
- Thermistor
