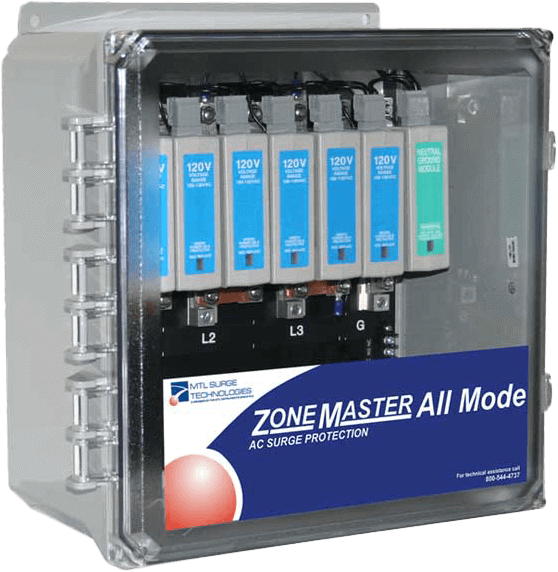

ZoneMaster All-Mode Range Power Surge Protection

Brand: MTL Instruments
Add Product to My Catalog

The ZoneMaster All-Mode range of surge protection devices combines unparalleled power handling capability, application versatility, proven circuitry along with simple installation, features which make ZoneMaster All-Mode units the ultimate power protection solution.

With 200kA and 340kA versions available and configurations suitable for all International supply voltages, ZoneMaster All-Mode is truly a versatile and flexible protection range.

ZoneMaster All-Mode devices are modular in construction, individual modules are bolted to a large surge return plate to minimize transient impedance.

These colour coded, replaceable modules, with a UL 94-5V rated plastic casing are supplied mounted within a durable NEMA 4X: IP66 rated enclosure.

ZoneMaster All-Mode units are easy to install via simple wall mounting and UL1449 4th Edition ,Type 2 SPDs
Features
  • Enhanced Redundancy Plus Thermal and Short Circuit Fusing
  • Low Let-through Performance with High Current Impulses
  • 100k AIC Short Circuit Current Rating
  • Replaceable Bolt-in Modules
  • Large Block MOV Technology
  • UL 1449 3rd Edition Listed
  • 15 Year Product Warranty

View_Details

Specifications

Brand

Maximum Surge Current Imax

  • 200 kA
  • 240 kA
  • 340 kA
  • 400 kA

Working Voltage

  • 120/240 Split
  • 120/208
  • 120/240
  • 277/480
  • 220/380
  • 240/415

Phase Types

  • Split Phase 3-wire
  • three-phase 4-wire WYE
  • three-phase 4-wire Delta

Documentation

Product Information

User Guide
