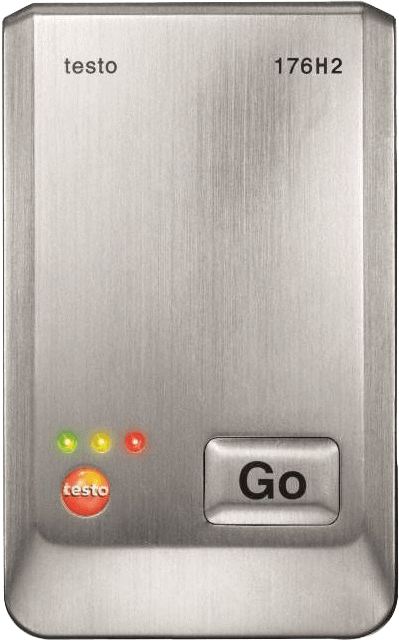

Testo 176H2 - Four-Channel Humidity & Temperature Data Logger
Brand: TestoThe testo 176H2 RH and temperature measurement logger has a rugged metal housing that makes it ideal for extremely cold or dusty environments.
The 176H2 is a humidity and temperature data logger that does parallel temperature and humidity measurements with external NTC temperature and humidity probes.
Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.
The testo 176H2 humidity and temperature data logger is an ideal data logger for the monitoring of temperatures and humidity.
Features- Professional software with Excel export function for programming the logger and data analysis
- Measure humidity and temperature on two channels thanks to its two connections for external sensors
- Temperature measuring range from -20°C to +70°C
- Robust metal housing and protection against dust and water jets in compliance with protection class IP 65
- Automatic measuring data backup when the battery runs out or is changed
- Displays violations of limit values
- External NTC sensor connections
- Data transfer possible using the USB port, or SD card (optional)
- Rugged metal housing making it ideal for extremely cold or dusty environments
- IP65 protection class
- Capable of CFR 21 Part 11 Compliancy
- Free data logger software available for download
- Data is secured within the logger, and can be password protected using ComSoft
Specifications
Brand
Delivery Scope
- Testo 176H1 Humidity and Temperature Measurement Logger with External NTC Sensor Connections, Batteries, Certificate of Conformity
Weight
- 7.76 oz. / 220 g
Dimensions
- 4 x 2 x 1 in. / 103 x 63 x 33 mm
Operating Temperature
- -4° F to 158° F / -20° C to +70° C
Housing
- Plastic
Protection Class
- IP65
Channels
- 4 External
Connectable Probes
- 2 x NTC Temperature Probe or 2 x Humidity Probe
Product Colour
- Black
Standards
- EU-guideline 2014/30/EU, 2011/65/EU
Measuring Rate
- 1 s to 24 h, 2 s to 24 h (Online Measurement)
Battery Type
- 1 x Lithium (TL-5903)
Battery Life
- 8 years (15 min. meas. rate, +25° C)
Interface
- mini USB, SD Card Slot
Memory
- 2,000,000 Measuring Values
Storage Temperature
- -40° F to 185° F / -40° C to +85° C
Measuring Range
- Temperature - NTC: -4° F to 158° F / -20° C to +70° C
- Humidity - Capacitive: 0 to 100 %rH*
- *Not for Condensing atmospheres
Accuracy - Temperature NTC
- ± 0.4° F (-4° F to 158° F) ± 1 Digit / ± 0.2° C (-20° C to +70° C) ± 1 Digit
- ± 0.7° F (Remaining Range) ± 1 Digit / ± 0.4° C (Remaining Range) ± 1 Digit
Accuracy - Humidity, Capacitive
- Dependent on Probe Selected
Resolution
- Temperature - NTC: 0.1° F / 0.1° C
- Humidity - Capacitive: 0.1 %rH
- Monitoring and Documentation of Building Climate
- Monitoring and Documentation of Storage Temperature and Humidity
- Monitoring and Documentation of Transport Temperature and Humidity
