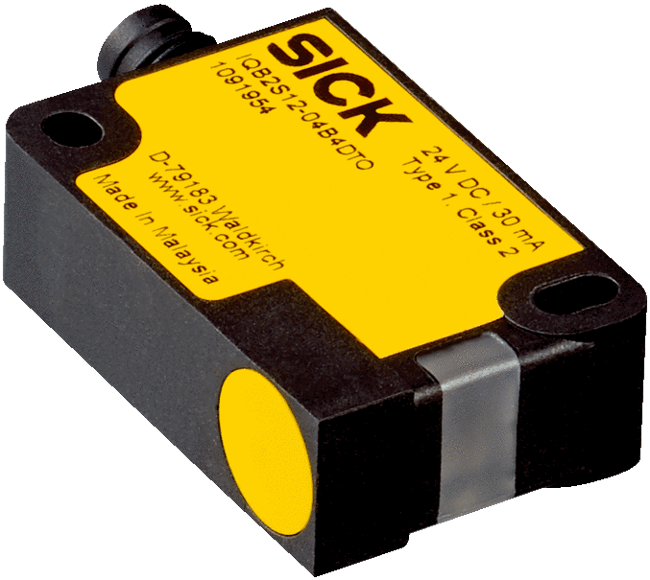

IQB2S Non-Contact Safety Switch
Brand: Sick AGThe inductive safety switches of the IQB2S product family are used for safe position and area monitoring.
Thanks to the very compact design and wide range of connection variants, they offer optimum integration into the machine design.
The IQB2S switches work without making contact and are low-wear.
The inductive safety switches do not require a separate actuator to do their monitoring tasks.
On the contrary, they are generally activated by metals, for example on machines.
The IQB2S can be connected to a safe control solution via its self-monitoring switching outputs (OSSDs), allowing for high safety with PL d (EN ISO 13849).
Features- machine design without separate actuator
- High machine availability thanks to low susceptibility to dirt and moisture
- Long product service life due to low-wear and low-maintenance workings
- Fast diagnostics via 270° LED output state display
- High reliability and precise switching behavior due to proven ASIC technology
- Safe, direct connection to a safe control solution by means of OSSDs
- Easy and flexible connection options thanks to variants with male connector, cable or cable with male connector
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus
Enclosure Rating
- IP67
Sensor Principle
- Inductive
Safety Integrity Level
- SIL 2 (IEC 61508)
- SILCL2 (EC 62061)
Temperature Range
- -25° to 70° C
Response Range
- 4 mm
Connection Type
- Cable with M12 Male Connector, 4-Pin
- Male Connector M8, 4-Pin
- Cable, 4-Wire
- Safe Position Monitoring
- Safe Area Monitoring
- Safe Presence Monitoring
