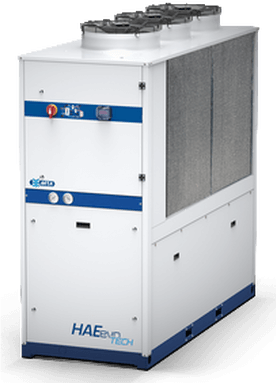

HAEevo TECH Reversible Heat Pumps
Brand: MTA S.p.A con Socio UnicoThe HAEevo TECH reversible heat pumps are high efficiency units specifically designed for wine industry, and generally for all process applications when high performance, continuous operation and reduced management costs are the main requirements.
The oversized heat exchangers surfaces and optimised scroll compressors ensure high performances, maximising the energy savings.
The wide numbers of options available makes the units highly customizable, suitable to satisfying any type of plant solution.
All units are compliant with the limits imposed by the ErP regulation for seasonal efficiency ratio SEPR HT and SCOP.
Features- Seasonal energy efficiency compliant with ErP Directive 2009/125/EC;
- Scroll compressors ensure high efficiency and performances, maximising the energy savings;
- Evaporator with in-tank configuration specifically designed for process cooling applications. It allows high flow rates with low pressure drops and compatibility with impure process fluids even with high percentages of glycol;
- Oversized water storage tank, useful to compensate the instability caused by sudden changes of the required load;
- Extended operating limits (chiller mode): Tw in max = +35 °C; Tw out min = -10 °C; Tamb max = +46 °C; Tamb min = -10 °C;
- Extended operating limits (HP mode): Tw out max = +55 °C; Tw out min = +30 °C; Tamb max = +20 °C; Tamb min = -10 °C.
Specifications
Mode
- Cooling and Heating
Compressors
- Scroll compressor
Refrigerant
- R410A
Heat Exchanger
- Immersed finned coil
Fan
- Axial fan
- EC axial fan
Certifications
- Eurovent
- EAC
- Chemical & Pharmaceutical
- Food & Beverage
- Rental
- Wineries
