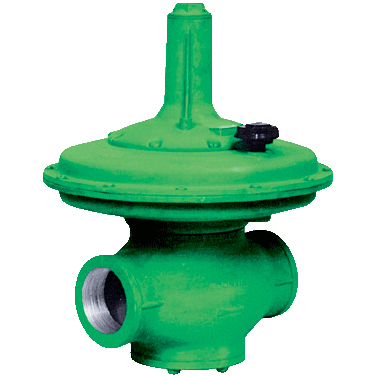

HON 226 SD Compact Regulator
Brand: Honeywell International IncThe Honeywell HON 226 SD gas pressure regulator helps control gas flow in offtake stations, commercial and industrial facilities.
The lightweight body regulator is suited for natural, non-aggressive and manufactured gases such as nitrogen, carbon dioxide, and propane.
What Is It?
Features include:
- Lightweight body (not DN100 & DN150)
- High-capacity compact body
- Optional with internal or external measuring impulse connection
- Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
- CE registration according to GAD
- Max. inlet pressure pu max:up to 0.2 bar
- Outlet pressure range Wd: 0.011 to 0.15 bar
- Temperature range: between –20 °C and 60 °C
- Connection: R ¾", R 1", R 1 ¼", R 1 ½", R 2", flanged DN50, DN65, DN80, DN100 and DN150
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
