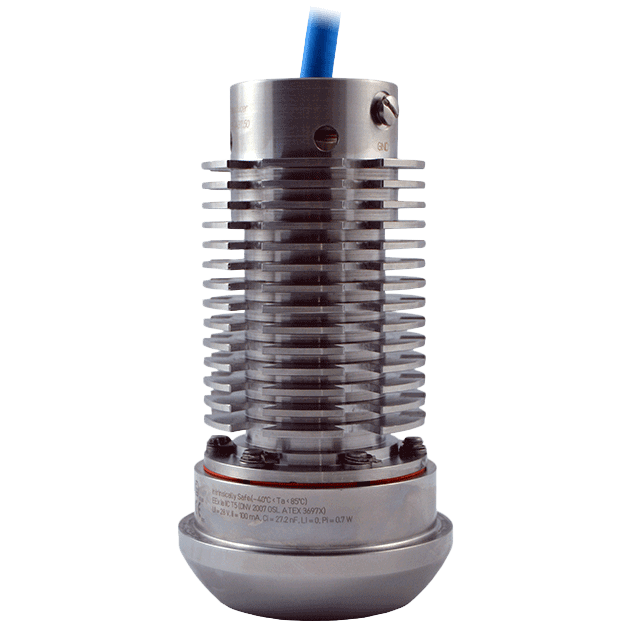

Model 270 QX Pressure Transducer
Brand: GP:50 New York Ltd
Features
- Output Signal: 0 to 5 Vdc
- Supply Voltage: 9 to 36 Vdc
- Pressure Range: 0 to 20,000 psi (69 to 1,379 bar, 0 to 137,895 kPa)
- Burst Pressure: 3 times FSO
- Proof Pressure: 1.5 times FSO
- Electrical Connections: PTO2E-10-6P
- Process Connection: WECO 2" - 1502 or 2002/2202
- Temperature Range:
- Operating: -45° to 182°C (-50° to 190°F)
- Compensated: -40° to 177°C (-50° to 360°F)
- Ambient: -45° to 49°C (-50° to 120°F)
- Storage: -51° to 87°C (-60° to 190°F)
- Effect on Zero/Span: <±1% Full Scale Output at 100°F
- Static Accuracy: Standard: ≤±0.25% Full Scale Output
- Materials of Construction:
- Housing: 300 Series Stainless Steel
- Sensor: 17-4 PH Stainless Steel and Inconel® X750
Specifications
Brand
Accuracy
- ≤ ± 0.25 % of Full Scale Output
Ambient Temperature Range
- -45° to 49° C (-50° to 120° F)
Compensated Temperature
- -40° to 177° C (-40° to 350° F)
Electrical Connectors
- Bendix PT02E-10-6P
Enclosure, Body Material
- 300 Stainless Steel
Environmental Protection
- IP67
Input Signal
- 8 mA Nominal
Operating Temperature
- -45° to 182° C (-50° to 360° F)
Output
- 0-5 Vdc
Pressure Range
- bar: 69 to 1,379
- kPa: 0 to 137,895
- psi: 0 to 20,000
Proof Pressure
- 1.5 times Full Scale Output
Resistance
- 10,000 ohms
Shunt Calibration
- 100 % of Full Scale Output by Shorting 2-Pins, Non-Isolated Version
Span & Zero Effect
- < ± 1.0 % of Full Scale Output 38° C (100° F)
Storage Temperature
- -51° to 87° C (-60° to 190° F)
Supply Voltage
- 9 to 36 Vdc
Wetted Materials
- 630 Stainless Steel
