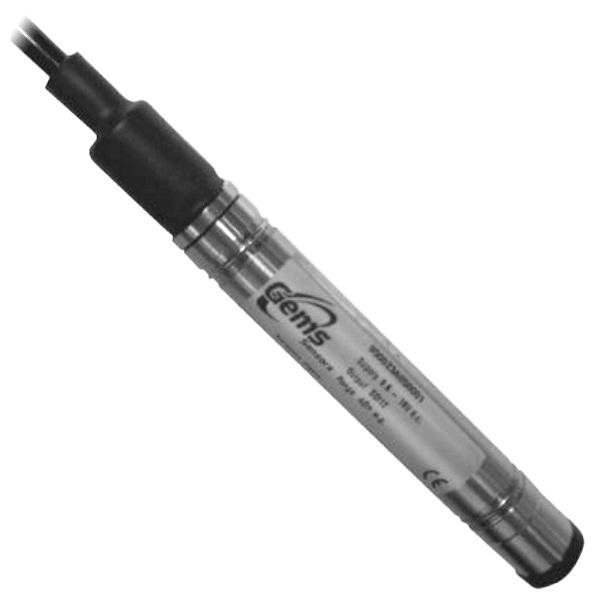

9600 Series Slimline Groundwater Monitoring Transducer
Brand: Gems Sensors, Inc9600 Series pressure transducers meets the rigorous conditions for ground water monitoring while providing ultimate performance.
9600 Series transducers feature built-in specific gravity compensation to provide a true level reading, even when the media is subject to temperature changes over the ranges 23° to 113° F (-5° to +45° C).
Manufactured with 318 stainless steel wetted parts, which provide excellent corrosion resistance. Reduce installation time, or recalibrate an installed unit without withdrawing it from its media, by using a cable-connected PC or hand-held interface.
The SDI-12 communicating versions offer minimal current draw for battery powered applications..
Features- Remote Ranging via PC Interface
- 20 mm Diameter
- SDI-12 Communications Versions
- 318 S/S Wetted Parts
- Total Error Band <±0.1% FS (23° to 113° F [-5° to +45° C])
Specifications
Brand
Accuracy
- ± 0.05 %
Approvals & Certifications
- CE
Approvals & Certifications
- Withstands Free Fall to IEC 68-2-32 Procedure 1
Burst Pressure
- 3 x Full Scale
Cable Length
- 0 to 196.9 ft (0 to 60 metres) - max.
Communication
- SDI-12
Compensated Temperature
- -5° to 45° C (23° to 113° F)
Current
- Consumption: Active less than 4 mA Average
- Consumption: Standby less than 450 µA
Electrical Connectors
- Standard Polyurethane (PUR) Cable
Environmental Protection
- IP68 to 200 mWG
Measuring Error
- Total Error Band: < ± 0.1 % of Full Scale (-5° to 45° C)
Metric Connection
- M16 x 1.5 for Calibration
Operating Temperature
- -25° to 70° C (-13° to 158° F) F357218Non-Freezing
Output
- 4-20 mA
Pressure Cycles
- Fatigue Life > 100 Million Full Scale Cycles
Pressure Range
- bar: 0 to 10
- Feet WC: 10 to 330
- kPa: 0 to 1,000
- meter WC (mWG): 0 to 100
- psi: 0 to 145
Proof Pressure
- 1.5 x Full Scale Nominal Range
Supply Voltage
- 8-30 Vdc
Thermal Drift
- ± 0.05 % Per Year
Wetted Materials
- 318 Stainless Steel
- Acetal
- Hastelloy
- Nitrile
- Polyurethane
