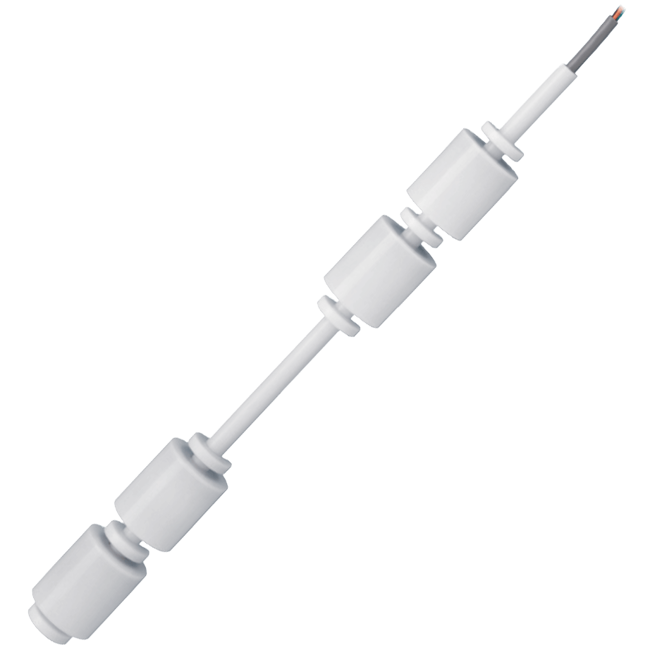

LS-300TFE Series Multi-Point Level Switch
Brand: Gems Sensors, Inc
Features
- Low particle generation-one piece molded design
- Corrosion resistant
- 1 to 4 actuation levels in a single unit
- Lengths up to 24"
Specifications
Brand
Applications
- Cabinet Leak Sensing
- Pure Chemical Delivery System
- Semiconductor Process Equipment
- Wafer Cleaning & etching Systems
Electrical - Free Leads
- Extended Leads: 22 AWG Teflons Wire
- Extended Leads: 24 AWG PVC Jacketed Cable
Electrical Connectors
- Cable
- Lead Wires
- Liquid-Tight Cable (Nylon)
Electrical Contacts
- Normally Closed
- Normally Open
Electrical Rating
- 10 / 20 / 50 / 100 VA
Enclosure, Body Material
- Float Material: PTFE
- Float Material: PVDF
Fluid Specific Gravity
- 0.86
Length
- Lead Wire: 24” (609.6 mm)
Maximum System Pressure
- psig: 50 (kPa: 344.7, bar: 3.5)
NPT Connection
- 1” NPT Male
- 1/4” NPT Male
- 3/8” NPT Male
Operating Temperature - Sensor
- -40° to 121° C (-40° to 250° F)
Sensor / Probe Style
- Float
Switch Type
- SPST
- Semiconductor process equipment
- Pure chemical delivery system
- Wafer cleaning and etching systems
- Cabinet leak sensing
