Thermal Camera Module

Brand: Realwear, Inc

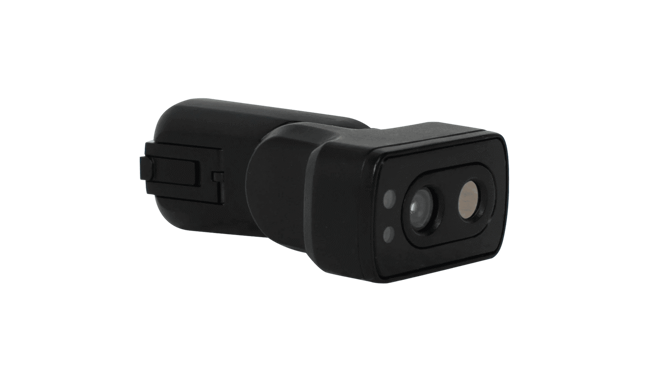

The Thermal Camera Module is a dual-camera unit which includes both the standard 48MP sensor, and a thermal sensor. With the ability to switch seamlessly between the visible spectrum and infrared it enables you to capture the heat signature of the surrounding environment.

Connect the Thermal Camera Module to your RealWear Navigator 500 Assisted Reality device to provide an unrivalled hands-free experience.

Specifications

Thermal Sensor

  • FLIR Lepton® 3.5

Thermal Resolution

  • 160 x 120

Effective Frame Rate

  • 8.7 Hz

FOV

  • 57° (H), Nominal
  • 71° (H), Nominal

Temperature Range

  • -20° to 400° C

Thermal Sensitivity (NETD)

  • < 50 mK

Spectral Range

  • 8 to 14 µm

Accuracy

  • High Gain Mode: Greater of +/- 5° C or 5% (Typical)
  • Low Gain Mode: Greater of +/- 10° C or 10% (Typical)

Visual Camera Sensor

  • 48 MP

Still Image

  • Up to 12 MP

Video

  • Up to 1080p, 60fps
