VSI Control Valve, FlowCon Green

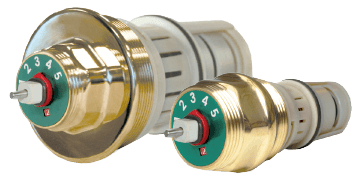

FlowCon Green Control Valve

Brand: Valve Solutions
Add Product to My Catalog

DESCRIPTION The FlowCon Green series is pressure independent control valves that are pressure independent, two-way, modulating to accept digital or Analog input signals. The valves accept 0(2)-10V, 3-point floating or ON/OFF input signals. Each valve has an adjustable maximum flow rate setting maintaining a full stroke to enable flow limitation and balancing to the coil or zone that the valve is controlling. For use in fan-coil units, VAV applications and cooling ceilings for activation of the heating or cooling. They are available in three different valve bodies, i.e. FlowCon A, AB or ABV.

View_Details

Specifications

Brand

Ambient Temperature Range

  • 1° to 50° C (34° to 122° F)

Approvals & Certifications

  • ANSI
  • IEC 60534-4 - Class IV

Ball Material

  • Ball Valve: Chemically Nickel-Plated Brass Ball

Cone Material

  • Green Insert 1-1/2”: PPS/EPDM
  • Green Insert 3/4”: PPS

Diaphragm Material

  • Green Insert 1-1/2”: Hydrogenated Acrylonitrile-Butadiene-Rubber
  • Green Insert 3/4”: EPDM

Differential Pressure

  • psid: 58 (kPa: 400, bar: 4,000)

Electrical Connectors

  • 4-Wires 22 AWG Halogen Free Cable, 3.2 feet

Enclosure, Body Material

  • Forged Brass

Environmental Protection

  • IP54 Including Upside-Down, Class III

Flow Capacity

  • 14.5 Cv
  • 3.0 Cv

Flow Rate

  • Green Insert 1-1/2”: 3.81 to 20.4 gpm (13.716 to 73.44 m³/hour)
  • Green Insert 3/4”: 0.141 to 4.89 gpm (0.5076 to 17.604 m³/hour)

Internal Part Material

  • Stainless Steel

NPT Connection

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1-1/2” NPT Female
  • 1-1/2” NPT Male
  • 1-1/4” NPT Female
  • 1-1/4” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male

O-Ring Material

  • Ethylene Propylene (EPR)

Pressure Range

  • bar: 4 to 6
  • kPa: 400 to 600
  • psid: 58 to 87

Process Temperature

  • -20° to 120° C (-4° to 248° F)

Static Pressure

  • psi: 360 (kPa: 2,482, bar: 25)

Supply Voltage

  • 110/230 Vac ± 10 %, 50/60 Hz
  • 230 Vac ± 15 %, 50/60 Hz
  • 24 Vac ± 20 %, 50/60 Hz
  • 24 Vac/Vdc, ± 20 %, 50/60 Hz
