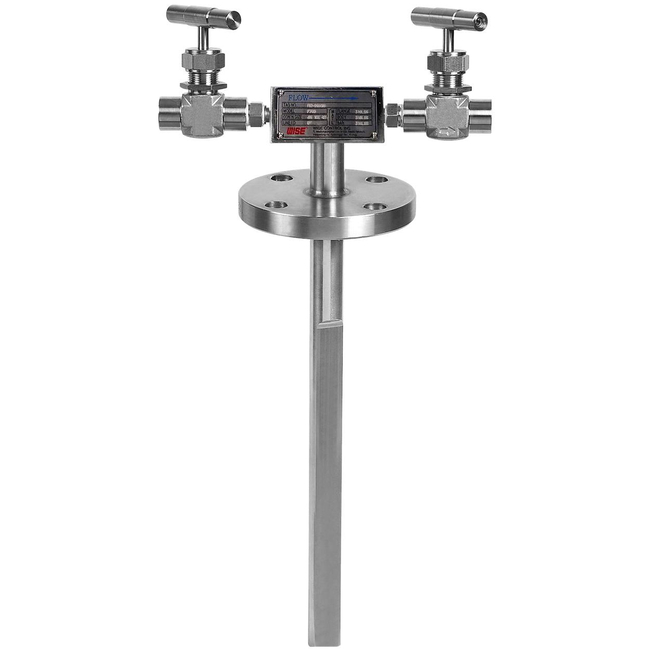

Averaging Pitot Tube F760
Brand: Wise Control IncAveraging pitot tube is an energy saving device used to measuring the flow of liquids, gases and steam in pipes, stacks and rectangular ducts.
It provides high, long term stability with low permanent pressure loss.
Examples of their applications are precise volumetic flow measurement in batch processes, continuous measurement of liquid ingredients in the process industry, fuel, air, steam and gases as primary energy source as well as in control functions requiring a high degree of stability and repeatability.
Specifications
Brand
Accuracy
- ± 1 % of Actual Flow Rate
Material
- Special Materials are available
- 304/316/316L Stainless Steel & Monel
Maximum Working Pressure
- 15 MPa
Maximum Working Temperature
- 600° C
Measuring Fluid
- Liquid, Gas, Steam & etc.
Pipe Size
- 50 ~ 1,800 mm
- 2” ~ 72”
Rangeability
- 10:1
Repeatability
- ± 0.1 % of Actual Flow Rate or Better
