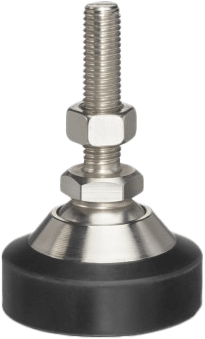

Load Foot for SIWAREX WL230 SB-S CA

Brand: Siemens AG

The self-centering load foot for SIWAREX WL230 SB-S CA load cells can be used for the quick and easy assembly of platform weighing machines and hopper scales.

Together with the load cell it forms a self-centering bearing unit.

The load foot transmits the force directly into the load cell.

The load foot is suitable for load cell rated load ranges from 100 kg up to 10 t (220.46 lb up to 9.84 tn. l.).

1 - 3 of 3 Part Numbers
7MH5721-4GH10
7MH5721-4GH10
Load Foot For SIWAREX WL230 SB-S CA, For load cells with a rated load of 100 kg ...2 t (220.46 lb ... 1.97 tn. l)
7MH5721-4PH10
7MH5721-4PH10
Load Foot For SIWAREX WL230 SB-S CA, For load cells with a rated load of 3 ... 5 t (2.95 ... 4.92 tn. l.)
7MH5721-5AH10
7MH5721-5AH10
Load Foot For SIWAREX WL230 SB-S CA, For load cells with a rated load of 10 t (9.842 tn. l.)
1 - 3 of 3 Part Numbers

Specifications

Brand

Rated Load

  • 100 kg, 250 kg, 500 kg, 1 t, 2 t, 3 t, 5 t, 10 t

Maximum Lateral Deflection

  • ± 1 mm (0.04 inch)

Maximum Vertical Load

  • 30 kN
  • 70 kN
  • 130 kN
