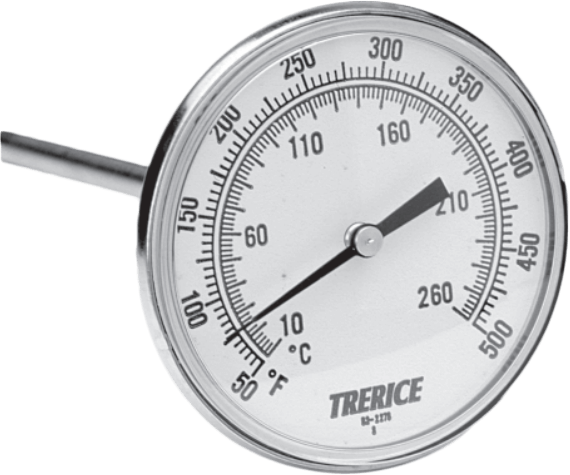

Rear Connect X-Series Bimetal Thermometer
Brand: Trerice Gauges & ValvesDirect Mounted thermometers with all stainless steel construction and hermetically sealed cases are designed for use in demanding industrial applications.
The Trerice X-Series OEM Bimetal Thermometer is designed to meet the demands of the OEM and industrial market-place, but at an economical price.
It features a hermetically sealed case with a narrow, space saving profile. This instrument does not include an external reset, ensuring tamperproof operation throughout the life of the unit.
Features- 3" Dial Size
- ±1.0% Full Scale Accuracy
- Stainless Steel Case and Stem
- Hermetically Sealed Design
Specifications
Brand
Model Dial Sizes
- B831X: 3”
Case
- 300 Stainless Steel, Hermetically Sealed
Stem
- 300 Stainless Steel, 1/4” Diameter
Coil
- Bimetallic, Silicone Dampened on Ranges to 300° F (148° C), above 300° F not Dampened
Connection
- Rear, 1/2” NPT
Window
- Polycarbonate
Pointer
- Balanced, Black Finished
Dial Face
- Aluminum, White Background with Black and Blue Graduations and Markings
External Reset
- No
Accuracy
- ± 1.0 % Full Scale ASME B40.3 Grade A
Approximate Shipping Weight
- 0.5 lbs (0.22 kg)
- Perfect for OEM Applications
