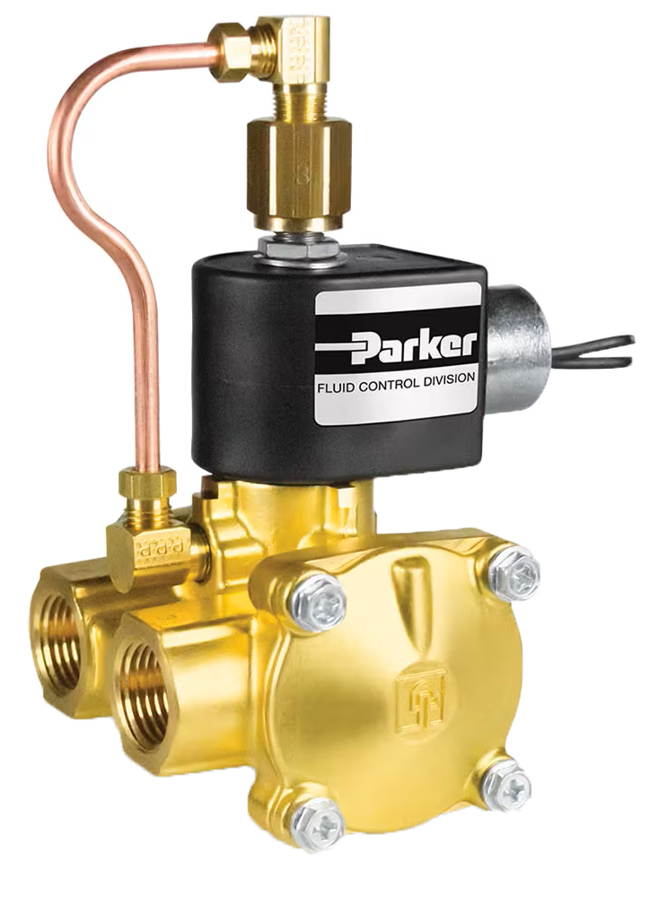

Parker 3-Way Normally Closed, ¾" NPT General-Purpose Solenoid Valves

Brand: Parker - Fluid Control Division
Add Product to My Catalog

Parker 3-Way Normally Closed, ¾" NPT Solenoid Valves provide operating pressures of 180 psi and flow factors of 7.3 Cᵥ's.

They offer a brass body, multiple mounting positions and coil options for all general-purpose flow control applications.

Parker's 3-Way Normally Closed, Direct Acting ¾" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential.

Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction.

Coil options are available in ½" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Features
  • High Quality Standards of Skinner® and Gold Ring™ Brand
  • Modular Design
  • Long Life
  • Tight Shutoff

1 - 12 of 22 Part Numbers
73312BN52NJ0N0C111C1
73312BN52NJ0N0C111C1
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 12 VDC Voltage (V), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 180 psi (DC) Maximum Pressure Differential (psi)
73312BN52NJ0N0C111C2
73312BN52NJ0N0C111C2
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 24 VDC Voltage (V), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 180 psi (DC) Maximum Pressure Differential (psi)
73312BN52NJ0N0C111P3
73312BN52NJ0N0C111P3
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), 10 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 180 psi (AC) Maximum Pressure Differential (psi)
73312BN52NJ0N0C111Q3
73312BN52NJ0N0C111Q3
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), 10 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X Coil Type, 180 psi (AC) Maximum Pressure Differential (psi)
73312BN52NJ0N0C222C1
73312BN52NJ0N0C222C1
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 12 VDC Voltage (V), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X Coil Type, 180 psi (DC) Maximum Pressure Differential (psi)
73312BN52NJ0N0C222C2
73312BN52NJ0N0C222C2
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 24 VDC Voltage (V), 10 Watt (DC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X Coil Type, 180 psi (DC) Maximum Pressure Differential (psi)
73312BN52NJ0N0C222P3
73312BN52NJ0N0C222P3
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), 10 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X Coil Type, 180 psi (AC) Maximum Pressure Differential (psi)
73312BN52NJ0N0C222Q3
73312BN52NJ0N0C222Q3
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), 10 Watt (AC) Power (Watts), 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X Coil Type, 180 psi (AC) Maximum Pressure Differential (psi)
73312BN52NJ0N0D100C1
73312BN52NJ0N0D100C1
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 12 VDC Voltage (V), 10 Watt (DC) Power (Watts), DIN Form A, Class F Coil Type, 180 psi (DC) Maximum Pressure Differential (psi)
73312BN52NJ0N0D100C2
73312BN52NJ0N0D100C2
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 24 VDC Voltage (V), 10 Watt (DC) Power (Watts), DIN Form A, Class F Coil Type, 180 psi (DC) Maximum Pressure Differential (psi)
73312BN52NJ0N0D100P3
73312BN52NJ0N0D100P3
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 110/50-120/60 Voltage (V), 10 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 180 psi (AC) Maximum Pressure Differential (psi)
73312BN52NJ0N0D100Q3
73312BN52NJ0N0D100Q3
PARKER 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves, 220/50-240/60 Voltage (V), 10 Watt (AC) Power (Watts), DIN Form A, Class F Coil Type, 180 psi (AC) Maximum Pressure Differential (psi)
1 - 12 of 22 Part Numbers

View_Details

Specifications

Brand

Actuation

  • Manual / Mechanically Operated

Body Material

  • Brass

Coil Protection Mode

  • NEMA 4X, 7 or 9 or Class F or H

Coil Type

  • ½” NPT Conduit, 18” Leads, Class F or H, NEMA 7, 9 or 4X, DIN Form A, Class F or H & ¼” Tab Terminal, Class F

Flow Factor 2 (Cᵥ)

  • N/A

Flow Factor Exhaust (Cᵥ)

  • N/A

Flow Factor Main

  • 7.3 Cᵥ

Function

  • Normally Closed

Maximum Fluid Temperature

  • 185°F

Maximum Pressure Differential

  • 180 psi (AC or DC)

Mechanical Option

  • Exhaust Return Pipe

Media

  • General-purpose for Air, Liquids & Gases

Minimum Fluid Temperature

  • 0°F

Minimum Pressure Differential

  • 10 psi

Number of Ports

  • 3

Orifice 2 Size (inch)

  • N/A

Orifice Exhaust (inch)

  • N/A

Orifice Main

  • ¾”

Port Size

  • ¾”

Port Type

  • NPT

Power

  • 10 Watts, AC or DC

Seal Material

  • NBR

Series

  • 7000 Series

Valve Type

  • 3-Way

Voltage

  • 110 / 50-120 / 60 to 220 / 50-240 / 60 V(AC) or 12 to 24 (VDC)

  • Single Acting Spring Return Cylinder Control
  • Selection or Diversion of Process Media
  • HVAC Damper Control
  • Instrumentation Equipment
  • Pneumatic Positioning
  • Automatic Dispensing Equipment
  • Gas Sampling
  • Small Compressors
  • Water Treatment
  • Air Dryers
  • Analyzers and Diagnostic Equipment
  • Medical and Dental Equipment
  • Portable Welding Equipment
  • Spraying Equipment
  • Lubrication Equipment
  • Textile and Dry Cleaning Equipment
  • Irrigation Equipment
  • Markets:
    • Commercial Equipment
    • Food & Beverage
    • Industrial Automation
    • Oil & Gas
    • Process Control
    • Transportation
