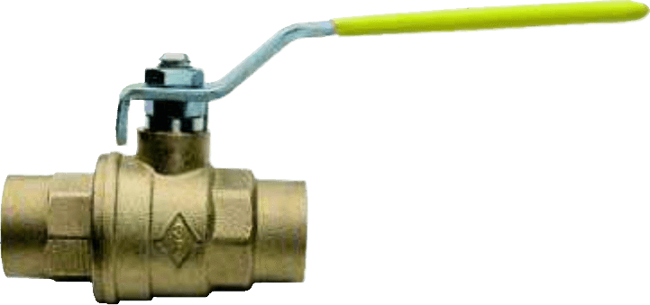

171 Series Brass Ball Valve
Brand: Rubinetterie Bresciane Bonomi
Bonomi Brass Ball Valves are known around the world for their quality. They are manufactured in Italy and Stocked in the US and Canada.
Features- 1/4" to 4" End Connections
- Full Port
- Pressure Rating 600 Water, Oil, Gas; 150 Wet Steam Pressure
- Temperature Rating to 366 Deg F
- 3 Stem Seals: Adjustable Teflon Packing, NBR Backup Oring, Teflon Thrust Washer
- Thrust Washer Prevents Galling and Provides Primary Stem Seal
- Forged Brass Body (Cheaper Cast Brass Valves can have porosity leaks through body)
- Many Approvals
Specifications
Handle
- 171L: Latch Lock Handle - 1/4” to 4” NPT
- 171M: Lever Handle - 1/4” to 1”
- 172M: Tee Handle - 1/4” to 1”
- 171N: Lever Handle - Size 1/4”to 4” NPT
- 172N: T-Handle - Size 1/4” to 1” NPT
- 171C: Nickel Plated - 1/4” to 4” NPT
- 1715: Lever Handle - Size 1/2” to 4” Sweat Ends
- 1725: Tee Handle - Size 1/2” to 1” Sweat Ends
- 171S: Ball and Stem 316 Stainless Steel - 1/4” to 4” NPT
End Connection
- 1/4” to 4”
Port
- Full Port
Certifications & Approvals
- NSF/ANSI
- CSA
- UL
- FM
- CAN
- ASME
Pressure Rating
- 600 wog (150 wsp)
Temperature Range
- Up to 366° F
Seat, Seal & Thrust Washer Material
- PTFE
