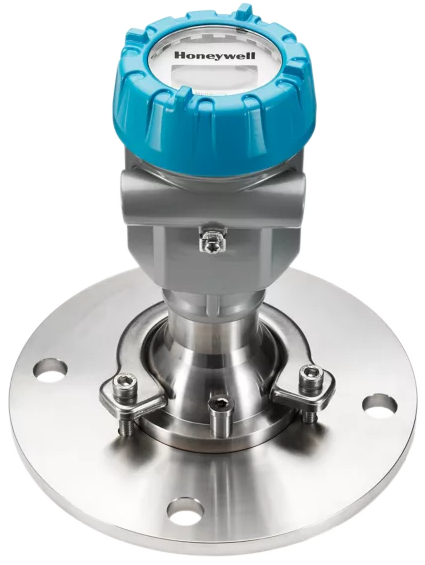

SmartLine SLN700 Non-contact Radar Level Transmitter
Brand: Honeywell Process SolutionsPart of the SmartLine® family of products, the SLN 700 is a high performance 80 GHz non-contact radar level transmitter offering high accuracy, stability over a wide range of level applications.
SmartLine SLN 700 level transmitters are an ideal solution for demanding process level needs, with easy-to-use and low-maintenance character.
The SmartLine family is also fully tested and compliant with Experion ® PKS, providing the highest level of compatibility assurance and integration capabilities.
SmartLine easily meets the most demanding needs for level measurement applications.
The SmartLine 80 GHz Non-Contact Radar Level transmitter utilizes Frequency Modulated Continuous Wave: FMCW technology which has greater sensitivity and accuracy for level measuring applications.
Features- 80 GHz FMCW Technology
- Narrow Beam, Small Blind Zone and Accurate Measurement
- Immunity to Temperature, Pressure, Most Obstacles, and Dust
- False Echo Suppression Option
- Easy Setup, No Dielectric Constant Dependence
- Small Antenna Size Fits Most Process: Easy to Install
- High Resolution: Better Accuracy and Process Detail
1 - 12 of 18 Part Numbers
50155288-001
50155288-002
50155288-003
50155288-004
50155288-005
50155288-006
50155288-007
50155288-008
50155288-009
50155288-010
50155288-011
50155288-012
1 - 12 of 18 Part Numbers
Specifications
Measuring Range
- Up to 30 m (liquids) / 120 m (solids)
Accuracy
- ±2 mm
Process Temperature Range
- -40 to 200 °C
Process Pressure Range
- -1 to 25 bar
Operating Voltage
- 12 to 30 V DC
Output Signal
- 4 - 20 mA & HART®
