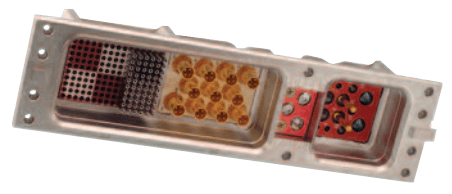

MDB/MBDVB MicroMiniature Rack/Panel Connector
Brand: ITT CannonMICRO-D microminiature rack/panel connectors are used in applications requiring highly reliable, extremely small, lightweight connectors.
These connectors are available in 2 insulator materials, 2 mounting variations, 7 shell sizes accommodating from 9 to 51 contacts and a special arrangement of 5 micro contacts and 2 coaxials.
The insulator materials listed give the MICRO-D connector wide versatility in most applications required by industry.
ITT can also terminate a wide variety of stranded or solid wire directly to MICRO-D contacts, which is often desirable in high density arrangements. MICRO-D connectors can also be custom harnessed to meet any customer requirement of single or multiple connectors.
Pigtail lead and harness description must be given by the customer. A typical description would be: .5" #25 AWG, gold plated copper leads or 18" of #26 yellow, Teflon-insulated, Type E wire.
Shown below are various methods of termination. Consult customer service for any routine or complex harnessing of MICRO-D connectors.
- Glass-filled diallyl phthalate thermoset material used in high temperature applications that is immune to cleaning solvents. It also has excellent dielectric properties. Temperature range: -55° to +149° C (-65° to 300° F)
- Glass-filled polyester thermoplastic that is not affected by cleaning solvents and exhibits excellent dielectric properties. Temperature range: -65° to 125° C (-55° to 257° F)
Specifications
Brand
Applications
- Aerospace
Approvals & Certifications
- RoHS
Circuit Protection
- EMI/RFI Protected
Configuration
- Polarized D
Electrical Connectors
- Plug
- Socket
- Wire Size: #24 Thru #32 AWG
Electrical Rating
- 3 A, Max.
Enclosure, Body Material
- Shell/Insulator (One Piece) MD/MDB: Glass-Filled Thermoset Plastic
- Shell/Insulator (One Piece) MDV/MDVB: Thermoplastic
Materials of Construction
- Contact Material: Copper Alloy
- Contact Material: Gold-Plated
Resistance
- Contact Resistance: 8 Milliohms, Max.
Termination
- Contact Termination: Multi-Indent Crimp
