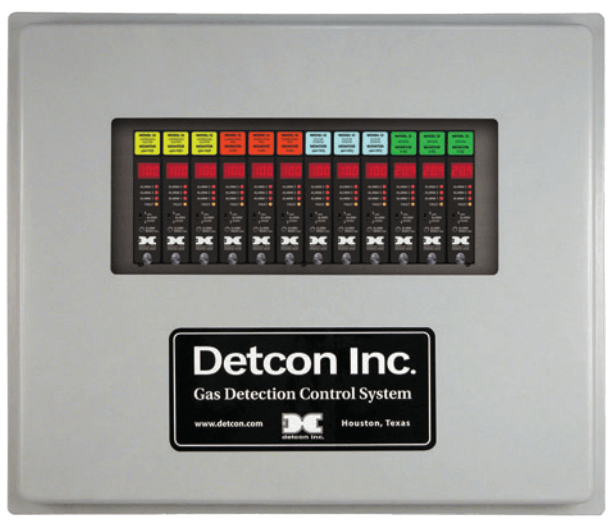

1212-N4X Gas Detection Control System

Brand: Detcon Inc

Detcon Model 1212-N4X control enclosure, along with Model 12 digital control modules, is designed to serve as a host control system for remote mount gas detection sensor assemblies.

The single channel modular design can be configured for any combination of gases.

All control modules are plug-in front panel accessible for easy maintenance and repair.

A “Blank Plate” can be installed on any unused channel until that channel is needed at some future date.

The Model 1212-N4X includes an integral power supply.

A power on/off switch and line power fuse are front panel accessible.

Specifications

Brand

Approvals & Certifications

  • ISO 9001: 2008

Channels

  • 12

Communication

  • Modbus
  • RS-485

Consumption

  • < 5 W Per Channel (Includes Gas Sensor & Control Module)

Electrical Contacts

  • Normally Closed
  • Normally Open

Environmental Protection

  • NEMA 4X Raintight

Input Power

  • 24 Vdc
  • 85-264 Vac

Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Output

  • 4-20 mA DC
  • Discrete or Zoned Alarm Relays
