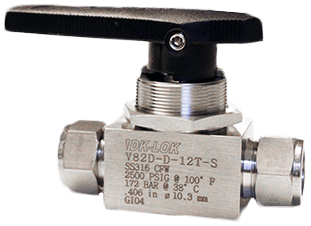

V82 Series Ball Valve
Brand: DK-LOKV82 Series Ball Valves are classified into 3 types according to the temperature range in use.
V82 series is for general use and VL82 is adequate to the low temperature range.
VG82 can be used in the widen temperature range from low to high temperature.
The exact temperature range of each type is referred to the technical data of the type.
Features- Sealing is achieved without system pressure
- Bi-directional flow
- Nylon directional handle - indicates the flow through the valve
- Panel mounting nut - is standard and permits valve to panel or actuator
- Top-loaded packing - allows packing adjustment with the valve in-line
- Capsule packing
- Fills voids in the valve body and prevents fluid entrapment
- Allows lowest dead space
- Support rings and discs - retains the capsule packing and prevent cold flow
- Integral ball stem
- Machined from single piece bar stock
- Eliminates the backlash during handle actuation
- One-piece body - reduces the number of potential leak points
- Pressure up to psig: 3,000 (kPa: 20,600, bar: 206)
- Lowest dead space design
Specifications
Brand
Approvals & Certifications
- ABS
- ASME N, NPT, NS
- BV
- CE
- CRN
- DNV GL
- KHNP
- KR
- LLOYD
- NK
- TÜV NORD
BSP Connection
- 1/2” BSPT Female - ISO
- 1/4” BSPT Female - ISO
- 3/8” BSPT Female - ISO
Enclosure, Body Material
- 316 Stainless Steel - ASTM A276, A479
- Brass C3604
NPT Connection
- 1/2” NPT Female
- 1/4” NPT Female
- 1/4” NPT Male
- 1/8” NPT Female
- 3/8” NPT Female
Seat / Seal Material
- Integrated Seat: PFA
Valve Type
- Manual
