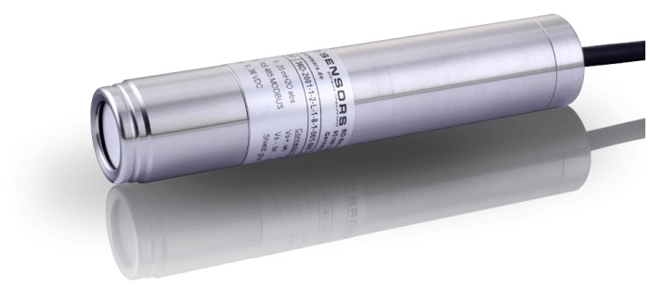

LMK 307 Level Probe

Brand: BD Sensors

The level transmitter LMK 307 is designed for continuous level measurement in water or waste water applications.

Basic element is a flush mounted ceramic sensor. Suitable for all fluids which are compatible with media wetted materials.

Different cable and elastomer materials can be offered according to the customer-specific operating conditions.
Features
  • Excellent linearity
  • Excellent accuracy
  • Easy handling

Specifications

Brand

Approvals & Certifications

  • ATEX: IBExU 10-ATEX-1068 X, II 1 G Ex ia IIC T4 Ga for Zone 0, II 1D Ex ia IIIC T 85° C Da for Zone 20, 94/4/EG
  • CE-Conformity
  • EMC: Emission & Immunity According to EN 61326, 2014/30/EU
  • IECEx (61508, 61511, 60770)
  • REACH
  • RoHS
  • TÜV NORD

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • IP68

Output

  • 0-10 V, 3-Wire
  • 0-20 mA, 3-Wire
  • 4-20 mA, 2-Wire

Pressure Range

  • bar: 0.39 to 24.52
  • kPa: 39.23 to 2,452
  • meters WC 4 to 250
  • psi: 5.65 to 355.6

  • Energy Industry
  • Environmental Industry
