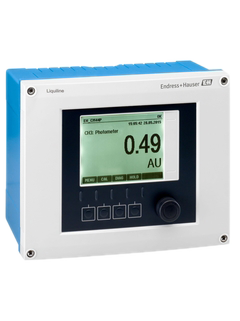

Multichannel Transmitter Liquiline CM44P
Brand: Endress+Hauser Group Services AG
Liquiline CM44P allows you to connect 2 process photometers with up to 4 Memosens sensors of your choice. It facilitates the setup of complete measuring points for monitoring processes such as chromatography, fermentation, phase separation and filtration.
Moreover, the transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts.
Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs.
Liquiline CM44P is especially suited for applications in the following industries:
- Life Sciences
- Food & Beverages
- Chemicals
- Oil & Gas
It features the following communication protocols and interfaces:
- 0/4...20 mA
- HART
- PROFIBUS DP
- Modbus RS485/RTU
- Modbus TCP
- EtherNet/IP
- PROFINET
- Webserver
The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.
Features- Intelligent design: One controller for all parameters including process photometers
- Cost-saving and comfortable set-up of measuring points: Combine up to two process photometers and four Memosens sensors for a perfect fit to your application
- Easy to operate and calibrate thanks to intuitive user interface and menu guidance
- Process control and safety: Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone
- Available as DIN-rail version for applications with limited mounting space - perfect for system integrators and skids
- Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures
Specifications
Material of Construction
- Housing Base & DIN Rail Housing: PC-FR
- Housing Seal & Display Deal: EPDM
Ingress Protection
- Field Device: IP66/67
- External Display: IP66
- Cabinet Device: IP20 Shock Protection
Design
- 2 to 8x Current Output
- Alarmrelay
- 4x Relay
- SD Card for Software Update and Copy & Paste of Setup
- 1 or 2 Process Photometer
- 0 to 4 Memosens Input
Measuring Range
- OUSAF12, OUSAF21, OUSAF22, OUSAF44, OUSAF46: 0 to 2.5 AU, max. 50 OD
- OUSAF11: 0 to 3 AU, 0 to 6 OD
- OUSTF10: 0 to 200 FTU, 0 to 200 ppm DE
- OUSBT66: 0 to 4 AU, 0 to 8 OD
Certifications & Approvals
- cCSAus
- IECEx, ATEX
- Life Sciences
- Food & Beverages
- Chemicals
- Oil & Gas
