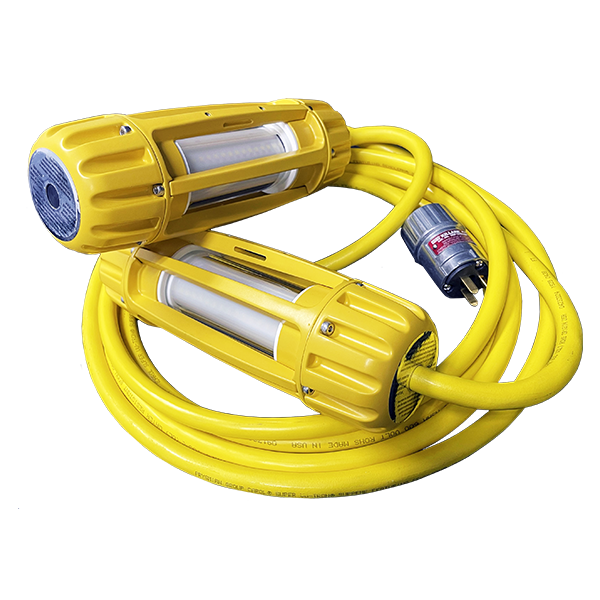

LS Series - 1,500 Lumen per Module Stringer Light

Brand: Nemalux Industrial

Add Product to My Catalog


Module spacing of 8 ft or less and a mounting height of 9 ft or less achieves OSHA-recommended illumination levels of 5fc. Nemalux designed the LS for temporary lighting applications in harsh and hazardous locations. The LS fixture is a stringer light available in several lengths and LED modules. The streamlined body allows for easier routing and pulling around obstacles. While the durable powder-coated finish stands up to the rigors of daily use. The LS has an ingress protection rating of IP66/67. Simple mounting options enable quick setup and teardown for temporary usage. The LS is a great fit for maintenance shutdown and turnaround.

LS Features

Approved for use in hazardous locations
Stringer light for temporary applications
Streamlined housing for quick installation and teardown
Versatile mounting options for increased flexibility
360° light output provides up-light and down-light
Field replaceable sub-assemblies and cable

LS Certifications and Safety Ratings

Certified for general and hazardous location use.
- Certified to:
  - UL 1088, UL 1598, UL 1598A, CAN/ULC-S1088
  - CSA C22.2 No. 137.18
- LS Safety Ratings:
  - Class I, Division 2, Groups ABCD, T5, -50°C Ta 70°C
  - Class II, Division 1, Groups EFG, T5, -50°C Ta 70°C
  - Class III; Zone 2, Zone 20, T5, -50°C Ta 70°C
