AST mV Output Pressure Sensor, 1240

1240 mV Output Pressure Sensor

Brand: American Sensor Technologies Inc
Add Product to My Catalog

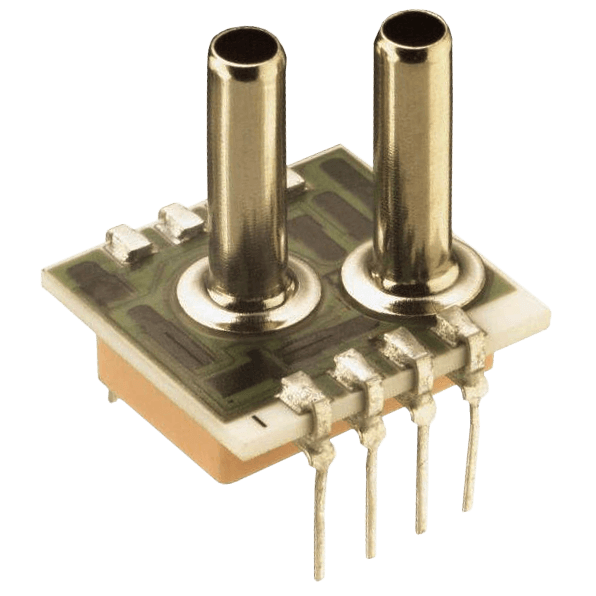

The 1240 is a high performance temperature compensated, piezoresistive silicon pressure sensor packaged in a dual-in-line configuration.

It is intended for cost sensitive applications where excellent performance and long-term stability are required. When using the 1240 with a fixed voltage reference and current set resistor as shown in the application schematic, a span of 50mV and 1% interchangeability can be achieved.

Integral temperature compensation is provided over a range of -20° to 85° C using laser-trimmed resistors. Absolute, differential and gauge pressure ranges from 0 to15 to 0 to100 psi are available.

Multiple lead and tube configurations are available for different applications. Please refer to the 1210 and 1220 information on products with operating pressures less than 0 to15 psi. For current excitation, please refer to the Model 1230.
Features
  • Dual-in-Line Package 
  • -20ºC to +85ºC Compensated Temperature Range 
  • ±0.1% Non Linearity 
  • 1.0% Interchangeable Span (provided by current set resistor) 
  • Solid State Reliability

View_Details

Specifications

Brand

Accuracy

  • ± 0.1 % of Span Non-Linearity

Ambient Temperature Range

  • 25° C (77° F)

Applications

  • Airspeed Measurement
  • Factory Automation
  • Handheld Calibrators
  • Leak Detection
  • Medical Equipment
  • Process Control

Approvals & Certifications

  • RoHS

Compensated Temperature

  • -20° to 85° C (-4° to 185° F)

Dimensions

  • 0.57" x 0.59" (14.7 x 15.2 mm)

Hysteresis

  • ± 0.01 % of Span - Pressure
  • ± 0.05 % of Span - Thermal

Materials of Construction

  • Aluminum
  • Ceramic
  • Gold
  • Nickel
  • Pyrex
  • RTV
  • Silicone

Media

  • Non-Corrosive Dry Gases

Operating Temperature

  • -40° to 125° C (-40° to 257° F)

Output

  • 0-50 mV

Output Noise

  • 1 µV Peak-to-Peak (10 Hz to 10 kHz)

Pressure Range

  • psi: 0 to 100 (kPa: 0 to 689.5, bar: 0 to 7)

Pressure Type

  • Absolute
  • Differential
  • Gauge

Resistance

  • 4,000 ohms - Input
  • 4,200 ohms - Output

Response Time

  • 1 ms - 10 % to 90 %

Span & Zero Effect

  • ± 0.5 % of Span

Stability

  • ± 0.05 % of Span - Short Term over 7 Days (offset & Span)
  • ± 0.1 % of Span over A Year - Long Term (offset & Span)

Storage Temperature

  • -50° to 150° C (-58° to 302° F)

Supply Voltage

  • 1.235 V
