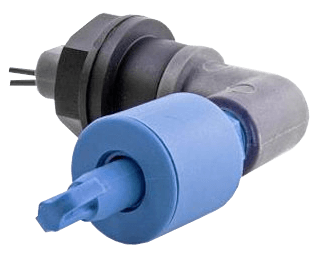

RCS05-20N Liquid Level Switch
Brand: American Sensor Technologies Inc
Features
- High or Low Level Sensing
- Internal Fitting Components
- Reed Switch Reliability
- Silicon Sealing Washer
- Easy Installation
- Normally Open or Normally Closed by Float Reversal
- Suitable for a Wide Range of Liquids
- Side Entry with Vertical Float Travel
Specifications
Cable Material
- PVC Insulated
Cable Type
- Stripped Cables
Electrical Connectors
- 22 AWG 16 / 0.2 mm Cable
Electrical Contacts
- Reed Contact
Electrical Rating
- 200 Vdc / 250 Vac / 1 A / 30 W
Enclosure Finish
- Blue
Enclosure, Body Material
- Nylon 6.6 - Shuttle, Float
Environmental Protection
- IP65
Fluid Specific Gravity
- 0.66
Materials of Construction
- Ruthenium - Contact
Maximum System Pressure
- psi: 68 (kPa: 470, bar: 4.7)
Metric Connection
- M16
Mounting
- External - Fitment
Mounting Position
- Any Axis
Operating Temperature
- -30° to 105° C (-22° to 221° F)
Sensor, Probe Diameter
- 0.78” (20 mm)
Sensor, Probe Style
- Float
Shock
- 30 G, 3 Half-sine Pulses of 11 milliseconds
Switch Type
- SPST
Vibration
- 35 G at 500 Hz
- Alcohols
- Chemical High or Low Level
- Cooking Oil
- Fuel Low Level
- Sump Level
