MS5201-XD mV Output Pressure Sensor

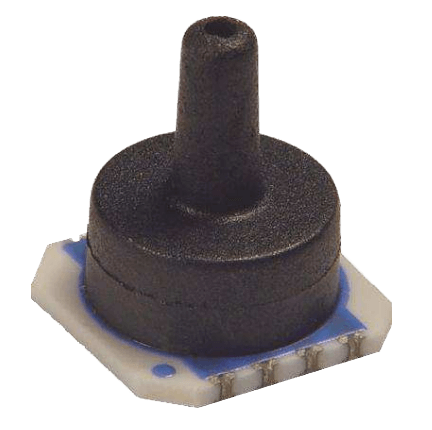

Brand: American Sensor Technologies IncThe MS5201-XD is a gauge type SMD pressure sensor, suitable for applications which require relative (gauge) pressure measurements.
The device consists of a silicon micromachined pressure sensor die mounted on a 7.6 x 7.6 mm ceramic carrier protected by a plastic cap with a port to connect plastic tube. The MS5201-XD can be delivered in a highly sensitive version giving a maximal output voltage or in a highly linear version giving a linear output voltage directly proportional to the applied pressure.
Features- Low cost SMD ceramic package
- High reliability, low drift
- -40°C to +125°C operation range
- Gel protection
Specifications
Approvals & Certifications
- RoHS
Hysteresis
- ± 0.05 % of Span - Pressure Hysteresis
- 0.3 % of Full Scale - Temperature Hysteresis
Linearization
- ± 0.05 % of Full Scale of 150 mV (High Linearity Version)
- ± 0.20 % of Full Scale of 240 mV Span (High Sensitivity Version)
Mounting
- Miniature Surface Mount 7.6 x 7.6 mm
Operating Pressure - Sensor
- psi: 0 to 14.5 (kPa: 0 to 100, bar: 0 to 1)
Operating Temperature
- -40° to 125° C (-40° to 257° F)
Overpressure & Static Pressure Limits
- psi: 145 (kPa: 1,000, bar: 10) - Overpressure (High Linearity Version)
- psi: 73 (kPa: 500, bar: 5) - Overpressure (High Sensitivity Version)
Repeatability
- ± 0.05 % of Full Scale
Sensitivity
- 150 mV/bar - High Linearity
- 240 mV/bar - High Sensitivity
Sensor, Probe Material
- Ceramic
Sensor, Probe Type
- Piezoresistive Silicon Micromachined Sensor
Storage Temperature
- -40° to 125° C (-40° to 250° F)
Supply Voltage
- 20 V
Temperature Effect
- ± 80 µV/°C - Temperature Coefficient of Offset
- -1,500 to -2,300 ppm/°C - Temperature Coefficient of Span
- 2,400 to 3,300 ppm/°C - Temperature Coefficient of Resistance
Zero Offset
- ± 40 mV
- Medical instrumentation
- Pneumatic controls
