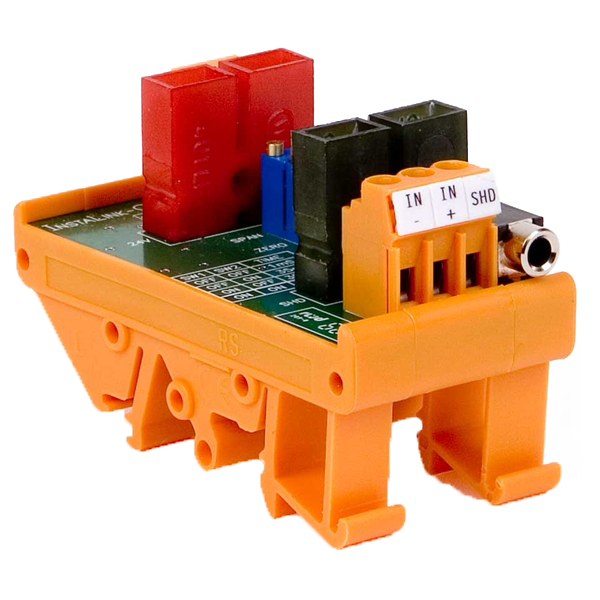

INSTALINK-CLI 4-20 mA Loop Isolator

Brand: Emphatec
Add Product to My Catalog

This module interfaces a field transmitter producing 4-20 mA to a PLC or DCS input. Power to the field transmitter is provided by an external power supply.

The InstaLink-CLI provides up to 2.5 kV of input-output isolation and also features overvoltage transient protection on the input. Unique features of the InstaLink-CLI include the make-before-break connector and adjustable response time.

The make-before-break connector allows a meter to be inserted into the input loop and removed without causing a momentary interruption of the loop. This makes calibration very easy. A test cable is available. Adjustable response time allows the user to select one of four response times – 1 ms, 35 ms, 350 ms or 400 ms.
Features
  •  Eliminates ground loop caused by differential ground voltages

  •  Make-before-break test jack for temporary connection of a meter

  •  Loop powered (2-Wire) input and output termination for shield on input side

  •  Adjustable response time from 1 to 400 ms

  •  Plug-in jumpers for output loop supply and shield reduces installation time (jumpers included)

  •  Mounts on 32 and 35 mm DIN rails

    • 1 - 1 of 1 Part Numbers
    INSTALINK-CLI
    INSTALINK-CLI
    • Model - INSTALINK -CLI
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Accuracy

    • 0.1%
    • 0.5%
    • 1%

    Approvals & Certifications

    • UL (C,US) E256770

    Electrical Connectors

    • 26 to 12 AWG
    • Jumpers: 16 to 14 AWG

    Input

    • Input Range: 4-20 mA

    Isolation

    • 2.5 kVac Input-Output

    Mounting

    • 32 mm or 35 mm DIN Rail

    Output

    • 4-20 mA
    • Output Loop Supply: 18-30 Vdc

    Resistance

    • Output Loop Impedance: 0 to 500 ohms at 18 Vdc Supply
    • Output Loop Impedance: 0 to 750 ohms at 24 Vdc Supply

    Response Time

    • 1 millisecond
    • 35 milliseconds
    • 350 milliseconds
    • 450 milliseconds

    Storage Temperature

    • -20° to 70° C (-4° to 158° F)

    Voltage Drop

    • 5.6 V at 20 mA
