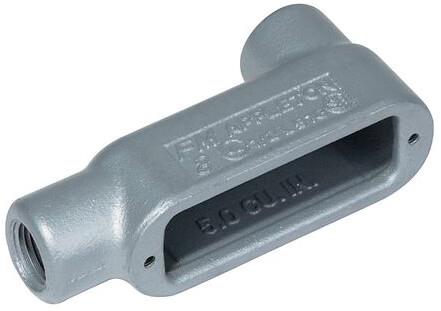

Appleton™ FM8™ Conduit Outlet Bodies

Brand: Appleton

Appleton™ FM8™ Conduit Outlet Bodies are used to connect and change direction of conduit runs.

In addition to making bends in a conduit system, they allow connections for branch runs.

These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintenance.
Features
  • Smooth, rounded integral bushings in hubs protect conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Flat back design provides greater cubic content for easier wire pulling, and more room for splicing. Fits flush and snug against flat surfaces for more stable installation
  • Smooth hub bushings and cover openings protect conductor insulation. Smooth hub openings allow easy conduit joining
  • Covers with gaskets are approved for use in wet locations
  • Completely interchangeable with Crouse-Hinds Form 8™ bodies, gaskets and covers. Equivalent FM8™ and Form 8 units have identical applications and installation dimensions

Specifications

Brand

Standard Material

  • Bodies: Grayloy-iron
  • Covers: Cast Grayloy-iron or Stamped Steel
  • Cover Screws: Stainless Steel
  • Gaskets: Neoprene

Standard Finish

  • Grayloy-iron Bodies & Covers: Triplecoat (1) Zinc Electroplate, (2) Chromate, and (3) Epoxy Powder Coat
  • Steel Covers: Zinc Electroplate
  • PVC Coating Available on All Bodies and Select Covers

NEC/CEC Certifications & Compliances

  • UL Standard: 514A, 514B
  • UL Listed: E2527
  • CSA Standard: C22.2 No. 18.3
  • CSA Certified: 065183
  • NEMA Standard: FB-1
