Emerson KTM Ball Valve, US110/200 Series

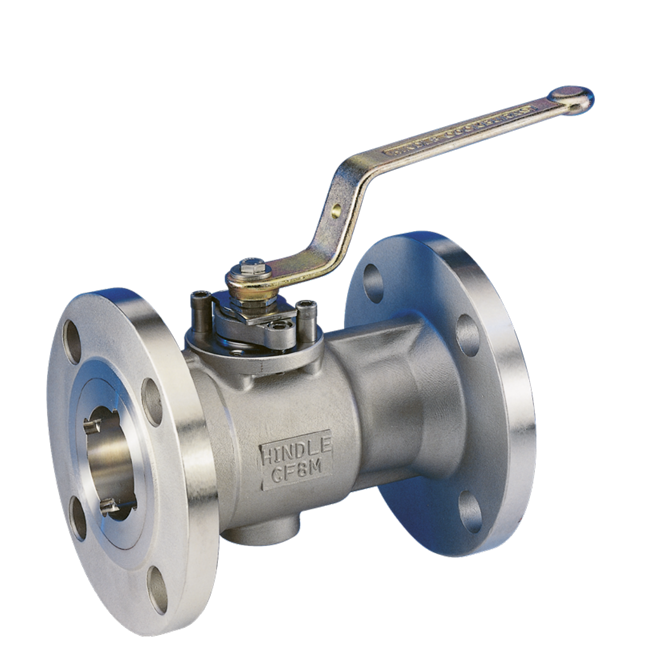

Hindle Series US110/200 UltraSeal Ball Valves

Brand: KTM
Add Product to My Catalog

A range of one piece reduced bore, flanged, free floating (seat supported) ball valves, incorporating mounting flanges to BS EN ISO 5211, featuring soft, metal and carbon seated designs.
Features
  • One piece reduced bore body, flanged construction in carbon steel, stainless steel and special alloys.
  • Compact body design with minimum weight and elimination of potential leak path.
  • Designed in accordance with ASME B16.34, BS EN ISO 17292 and ISO 14313/API 6D.
  • Floating ball design for bi-directional shut-off.
  • Flexing soft seat design for superior shut-off across a range of pressures with minimum operating torque.
  • Low temperature and cryogenic designs for service down to -196°C available on request.
  • Spring energized metal and carbon seat designs permitting tight shut-off and positive cavity pressure relief.
  • Fused hard nickel alloy, chromium Carbide or Tungsten Carbide coated seat and ball designs for abrasive and high temperature service.
  • Hard carbon seat design for medium temperature applications.
  • High integrity shaft seal minimizing the potential for atmospheric leakage.
  • Fugitive emission performance to BS EN ISO 15848-2 class A.
  • Corrosion resistant trim. Standard valves incorporate balls and shafts of stainless steel for long service life.

    • Specifications

    Brand

    Applications

    • Steam Headers, Storage & Distribution, Storage & Transport, Storage & Distribution, Storage, Refining, Cooling Water

    Approvals & Certifications

    • ABS, CRU, Fire Safe, American Bureau of Shipping Shipboard, Fugitive Emission, NACE, PED, SIL Capable

    Body Design

    • Side Entry, Long Pattern, Short Pattern

    End Connection

    • Flanged

    Material

    • Super Duplex, Stainless Steel, Stainless, Monel, Inconel, Hastelloy

    Media

    • Water, Vacuum, Steam, Specialty Gases, Oxygen

    Pressure Class

    • ASME

    Process Connection Type

    • CL300 RF, Class 150 RF, 300 RF, 150 RF

    Seat / Seal Type

    • Ball, Cryogenic, Metal, Soft, Soft Seal

    Shutoff Class

    • Class VI (FCI 70-2), API 598, Zero Leakage

    Standards

    • API 608, ASME B16.34

    Valve Size

    • NPS 14 / DN 350, NPS 2 / DN 50, NPS 3 / DN 80, NPS 3/4 / DN 20, NPS 4 / DN 100, NPS 6 / DN 150, NPS 8 / DN 200, NPS 12 / DN 300

    Valve Size Standard

    • DN, NPS

    Valve Type

    • Ball, Floating Ball Valve, Ball Valve
