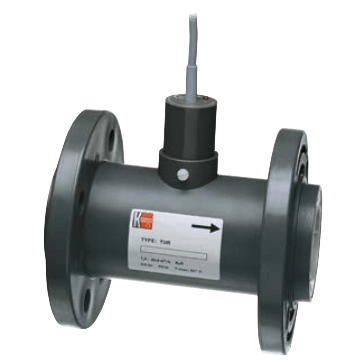

TUR Turbine Wheel Flowmeter/Monitor
Brand: KOBOLD Instruments, Inc
The KOBOLD flow meters with turbine wheel serve to measure, control and regulate flowing liquids. The use of chemically highly resistant materials allows the devices to be used with acids, lyes and aggressive media that are to be found in the chemical industry.
Specifications
Brand
Accuracy
- ± 1 % of Full Scale
Adjustment
- 2 Buttons - Settings
Axle Material
- Sapphire - Bearing Axle
Bearing Material
- Sapphire - Bearing Bush
Cable Length
- 6.56 feet (2 m)
Current
- 15 mA Typical - Idle Current
Display
- 240° Display
- 3-Segment LED
- 5-Digit Digital Display
- Bar Graph
Electrical Connectors
- Cable Gland
- M12 x 1 - Plug Connector
- Pluggable Terminal Block
- PVC Cable
Electrical Contacts
- N/O or N/C Programmable
Enclosure / Body Material
- Aluminum
Environmental Protection
- IP65
Flange Material
- PVC
Flange Size - 1” (DN 25)
- 1" (DN 25) - PN 10
Flange Size - 2” (DN 50)
- 2" (DN 50) - PN 10
Flange Size - 3” (DN 80)
- 3" (DN 80) - PN 10
Flange Size - 4” (DN 100)
- 4" (DN 100) - PN 10
Flow Rate
- 0.2-5 to 2.5-100 m³/hour Water
Indication
- Moving Coil Instrument
Load
- 250 ohms
- 500 ohms
Nut & Bolt Material
- Polyamide - Bolt
- PVDF - Bolt
Operating Pressure
- psi: 145 (kPa: 1,000, bar: 10) - Max.
Operating Temperature
- 60° C (142° F) - Max.
- 70° C (158° F) - Max.
Output
- 0-10 Vdc
- 0-20 mA
- 400 mA - Pulse
- 4-20 mA
- 4-Wire
- NPN Pulse
- PNP Pulse
Output Format
- 1 or 2 PNP or NPN Semiconductor
Power
- 500 W - Analog Output
Power Requirement
- 100-240 Vac ± 10 %
- 18-30 Vac
- 230 Vac
- 24 Vac
- 24 Vdc
- 24 Vdc ± 20 %, 3-Wire
Switch Type
- Transistor: PNP / NPN
Wetted Materials
- PVC - Fitting, Turbine Wheel
- PVDF - Fitting, Turbine Wheel
