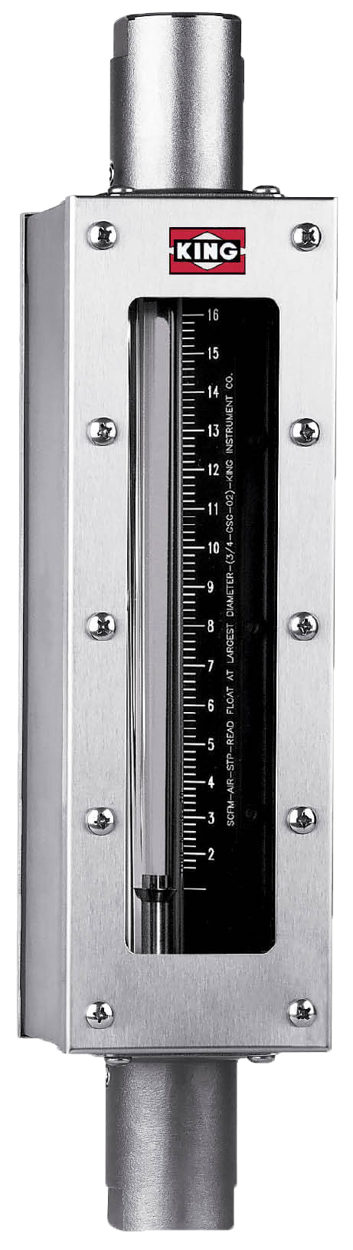

7910 Series Glass Tube Flowmeter
Brand: King Instrument Company70 flow ranges in 7 tube sizes makes these 250 mm scale glass tube, 304 Stainless steel case models one of our largest series. Dual port connections (both horizontal and vertical on each end) allow for a variety of installation options.
Features- 70 Flow Ranges in 7 Tube Sizes
- Borosilicate Kinglass Meter in Stainless Steel Case
- Dual Port Connections; Versatile Installation Options
- 250mm Detachable, Direct Reading Scale
- 0.22 – 132 GPM Water; 0.9 – 350 SCFM Air
1 - 12 of 2,208 Part Numbers
791-2-2-1-31A-H-0
- Media Type - Air
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Air Flow - .9 SCFM
- Connection - Horizontal
- Alarm Option - No Alarm
791-2-2-1-31A-V-0
- Media Type - Air
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Air Flow - .9 SCFM
- Connection - Vertical
- Alarm Option - No Alarm
791-2-2-1-31W-H-0
- Media Type - Water
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 0.22 GPM
- Connection - Horizontal
- Alarm Option - No Alarm
791-2-2-1-31W-V-0
- Media Type - Water
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 0.22 GPM
- Connection - Vertical
- Alarm Option - No Alarm
791-2-2-1-32A-H-0
- Media Type - Air
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Air Flow - 1.4 SCFM
- Connection - Horizontal
- Alarm Option - No Alarm
791-2-2-1-32A-V-0
- Media Type - Air
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Air Flow - 1.4 SCFM
- Connection - Vertical
- Alarm Option - No Alarm
791-2-2-1-32W-H-0
- Media Type - Water
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 0.315 GPM
- Connection - Horizontal
- Alarm Option - No Alarm
791-2-2-1-32W-V-0
- Media Type - Water
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 0.315 GPM
- Connection - Vertical
- Alarm Option - No Alarm
791-2-2-1-33A-H-0
- Media Type - Air
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Air Flow - 2.7 SCFM
- Connection - Horizontal
- Alarm Option - No Alarm
791-2-2-1-33A-V-0
- Media Type - Air
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Air Flow - 2.7 SCFM
- Connection - Vertical
- Alarm Option - No Alarm
791-2-2-1-33W-H-0
- Media Type - Water
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 0.64 GPM
- Connection - Horizontal
- Alarm Option - No Alarm
791-2-2-1-33W-V-0
- Media Type - Water
- Fitting Material - 316 Stainless Steel
- Float Material - 316L SS
- O-ring Material - EPR
- Water Flow - 0.64 GPM
- Connection - Vertical
- Alarm Option - No Alarm
1 - 12 of 2,208 Part Numbers
Specifications
Brand
Metering Tube
- Borosilicate Kinglass
Internal Components
- 316L Stainless Steel
- Hastelloy C-276
Fitting Material
- 316L Stainless Steel
- PVC
Inlet/Outlet Fittings
- NPT or flange, vertical or horizontal 360° fully rotatable
O-Ring
- Viton
- Buna-N
- EPR
- Kalrez
Case And Covers
- 304 Stainless Steel case
- Polycarbonate shield
Capacities
- Water: 0.22 to 132 GPM
- Air: 0.9 to 350 SCFM
Scale
- 250 mm (10") Direct reading, detachable
Accuracy
- ± 2 % of full scale flow
Turndown
- 10:1
Repeatability
- 0.5 %
Maximum Temperature
- 316L Stainless Steel fittings: 200° F
- PVC fittings: 115° F
Maximum Pressure
- 316L Stainless Steel fittings: 300 psig, size 3 & 4
- 316L Stainless Steel fittings: 250 psig, size 5 & 6
- 316L Stainless Steel fittings: 150 psig, size 8
- 316L Stainless Steel fittings: 125 psig, size 9
- PVC fittings: 150 psig, size 3,4,5,6 & 8
- PVC fittings: 125 psig, size 9
