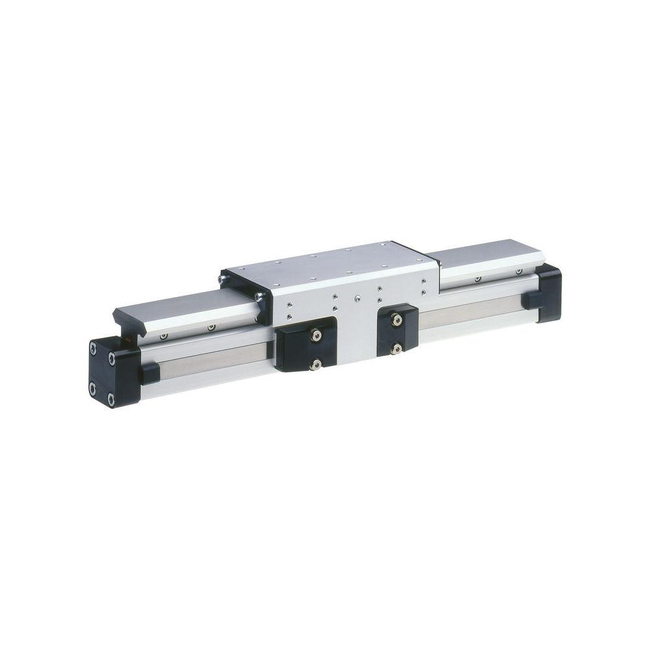

OSPE50-ST Trapezoidal Screw Driven, SLIDELINE Plain Bearing, Rodless Electric Linear Actuator

OSPE50-ST Trapezoidal Screw Driven, SLIDELINE Plain Bearing, Rodless Electric Linear Actuator

Brand: Parker Hannifin
Add Product to My Catalog

With multiple standard options and IP54 rating, OSPE-ST 50 lead screw driven actuators are designed for low-speed, low duty cycle, medium thrust applications. The trapezoidal screw prevents back driving, ideal for vertical applications. Payloads to 2000N.

With 3 different bore sizes, multiple guidance, mounting and carriage options, and an integrated seal strip offering IP54 protection, along with a multitude of other customizable features the OSPE-ST trapezoidal lead screw driven linear actuator is designed for low-speed and medium thrust applications for duty cycles under 10%.

The trapezoidal screw also prevents the ability to back drive the unit making it ideal for vertical applications.

The field-proven OSPE…ST design is truly industry leading for its ability to cover an extremely wide array of point to point linear positioning applications.

Compact size of the unit coupled with the OSPE…ST's extreme flexibility and maximized configurability, make the OSPE…ST simple to integrate into any machine layout with ease.
Features
  • Frame width of 87mm
  • Positional repeatability of +/- 500 microns
  • Maximum velocity of 150 mm/sec
  • Maximum thrust of 2,500N
  • Integrated drive and guidance system
  • Standard strokes up to 2,000mm
  • Pre-configured motor, gearhead, and control package options
  • Diverse range of accessories and mountings
  • IP54 rated

Specifications

Brand

Additional Protection Option

  • Steel Strip Cover

Approvals & Certifications

  • Cleanroom Certified (Custom Option)

Bearing Type

  • SLIDELINE Plain Bearing Guide

Corrosion Resistant Option

  • No

Drive Type

  • Leadscrew

Idler Unit Option

  • No

Linear Feedback Device

  • No

Maximum Acceleration (Inch/S2)

  • 77.3

Maximum Acceleration (m/S2)

  • 2

Maximum Payload FZ (N)

  • 2000

Maximum Speed (inch/sec)

  • 5.9

Maximum Speed (m/sec)

  • 0.15

Maximum Stroke (inch)

  • 98

Maximum Stroke (mm)

  • 2500

Maximum Thrust FX (Lbs)

  • 562

Maximum Thrust FX (N)

  • 2500

Position Repeatability (± Inch)

  • 0.02

Position Repeatability (± mm)

  • 0.5

Profile Width (mm)

  • 87

Series

  • OSP-E

Typical Payload FZ (N)

  • 350 - 2000
