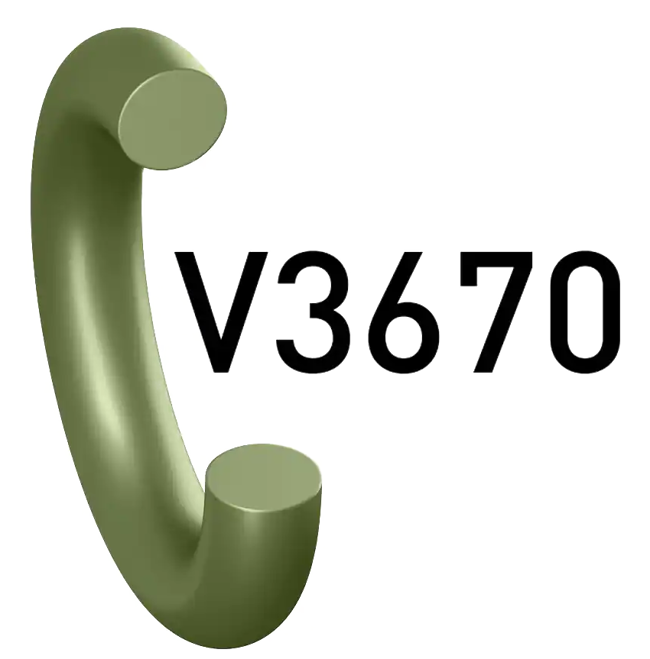

Fluorocarbon O-Ring, 70 Shore A, General-Purpose (Praedifa Series V3670-70)
Brand: PraedifaGeneral purpose O-ring for a broad range of markets and applications; green color.
Specifications
Brand
Approvals & Certifications
- None
Color
- Green
Fluid Compatibility
- Broad Range
Industry Standards
- AS 528, ISO 3601, BS 1806, BS 4518, JIS B2401, NF T 47-501, SMS 1586
Inside Diameter (mm)
- 0.7 to 996
Internally Lubed
- No
Markets
- General
Maximum Working Temperature (°C)
- 200° C
Maximum Working Temperature (°F)
- 392° F
Meets Certifications
- None
Minimum Working Temperature (°C)
- -25° C
Minimum Working Temperature (°F)
- -13° F
Nominal Hardness
- 70
Nominal Hardness Range
- 70
Polymer Family
- Fluorocarbon (FKM, FPM)
Region of Origin
- Europe
Thermal Application (°C)
- High Temperature (up to 125° to 200° C)
Thermal Application (°F)
- High Temperature (up to 260° to 400° F)
Trade Name
- V3670, V3670-70
Width (mm)
- 0.5 to 9.5
