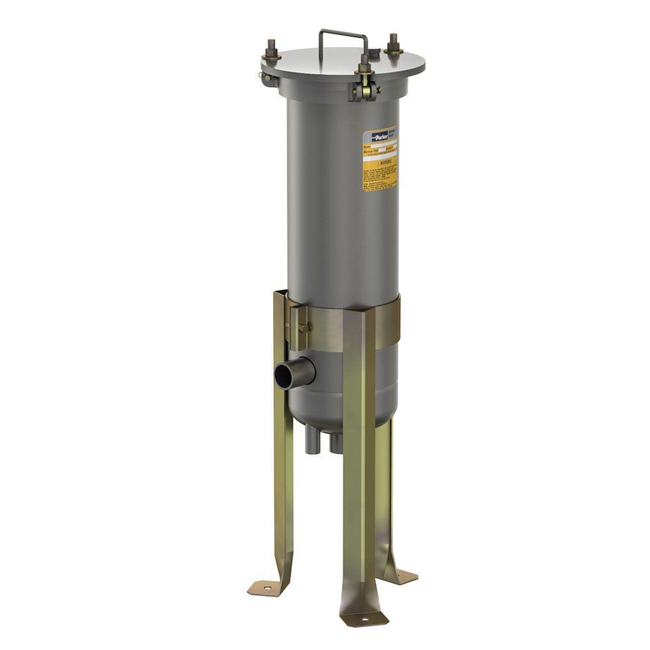

Fulflo CP Multi-Cartridge Filter Vessels | Carbon Steel, Non ASME Code Design for High-Efficiency Filtration
Brand: Parker HannifinThe Fulflo CP multi-cartridge filter vessels are designed for high-efficiency and economical operation in oil reclamation and maintenance liquid filtration applications.
The vessel features the integrity of a swing bolt for fast, easy opening and closing.
It comes with standard zinc plated volts and legs for corrosion resistance.
The light, compact design makes the Fulflo CP easy to mount on equipment or on the floor to conserve space.
The adjustable legs offer installation flexibility by allowing various inlet elevations and nozzle orientations.
Wall mounting brackets are also available. The CP filter vessel series replaces the FPM filter vessel series.
Features- Single O-ring design closure assures quick, positive cover sealing
- Swing bolts for fast, and easy opening and closing of cover
- Commercial engineering design (Non-Code)
- Pivot pin cover allows cover to remain attached when opened
- Adjustable leg height
- Optional mounting wall bracket (P/N 0820-6005)
Specifications
Brand
Connection Size
- 1-1/2-inch NPT
Filter Construction
- Multi-Cartridge Filter Vessel
Flow Rate
- 30 gpm, 60 gpm
Function
- Clarification
Industry Standards
- Non-ASME Code
Markets
- Industrial / Inks, Paints & Coatings
Maximum Operating Pressure (psi)
- 175 psi (12.1 bar)
Maximum Operating Temperature (°F)
- 250° F
Seal Material
- Buna-N (250° F Max.)
- Hydraulic Oil Filtration
- Quench Oil Filtration
- Engine & Compressor Lube Oil Filtration
- Cutting Oil Filtration
- Coolant Filtration
- EDM Liquid Filtration
