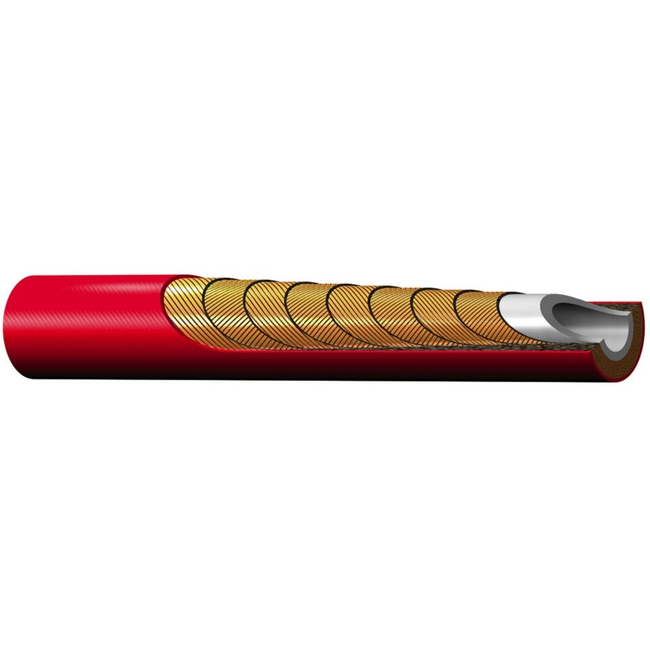

Ultra-High Pressure Water Jetting Hose for Ultra-High Pressure Water Jetting - 2848D

Brand: Parker Hannifin

Parker High Pressure 2848D Hoses are developed for High and Ultra High Pressure applications, combining excellent handling and long service life with superior safety standards.

For working pressure up to 320 MPa.

Specifications

Design Factor

  • 2

Hose I.D. (DN)

  • 8, 12

Hose I.D. (inch)

  • 5/16”, 1/2”

Hose I.D. (mm)

  • 7,8, 13

Hose I.D. (Size)

  • -5, -8

Hose O.D. (inch)

  • 0,77 - 1,18

Hose O.D. (mm)

  • 19,6, 29,9

Industry Standards

  • DIN EN 1829-11

Maximum Working Pressure (bar)

  • 3000 - 3200

Maximum Working Pressure (Mpa)

  • 300 - 320

Maximum Working Pressure (psi)

  • 46400, 43500

Maximum Working Temperature (°C)

  • +70° C

Maximum Working Temperature (°F)

  • +158° F

Minimum Bend Radius (inch)

  • 11,02 - 13,78

Minimum Burst Pressure (MPa)

  • 800, 625

Minimum Burst Pressure (psi)

  • 116000, 90625

Minimum Working Temperature (°C)

  • -10° C

Minimum Working Temperature (°F)

  • 14° F

Weight (kg/m)

  • 1,1, 2,5

Weight (Lbs/Ft)

  • 0,74 - 1,68
