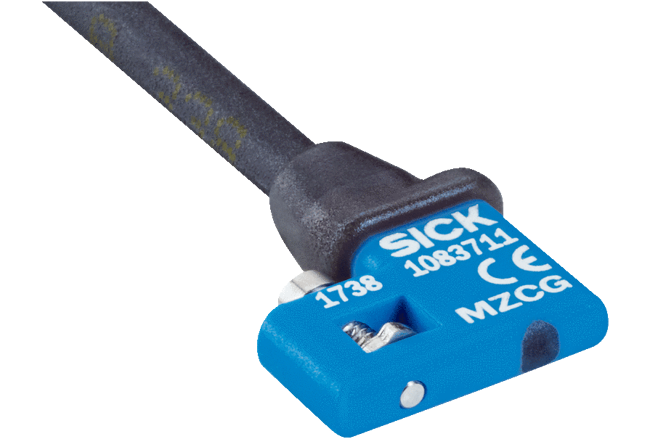

MZCG VIA Sensor for T-Slot Cylinders
Brand: Sick AGThe MZCG magnetic cylinder sensor detects the piston position in pneumatic grippers and pneumatic miniature cylinders.
Thanks to its very small design, the MZCG is particularly well-suited for the C-slots of very small pneumatic actuators such as are used in handling and assembly, robotics or the electronics industry. The sensor is simply inserted in the C-slot and can be quickly and safely fastened to the cylinder.
The MZCG fits in a wide range of C-slots of various manufacturers due to its universal housing design. This reduces storage costs, enables flexible machine design and easier service.
At a glance
- Extremely short housing (12.2 mm) for applications in pneumatic grippers and miniature cylinders
- Fits in all commonly-used C-slots, e.g. from Schunk, Zimmer, Festo or SMC
- Short, precise switching point, ideal for applications with small stroke
- Cable suitable for drag chain
- IP68 enclosure rating
- Yellow LED as optical adjustment indicator and output state display
- Green LED acts as a status indicator
- IO-Link and automation functions
- Extremely small housing saves installation space, thereby increasing efficiency of the system
- Shorter switching point optimized for gripper applications increases process efficiency due to higher PSDI times
- Suitable for a wide range of applications: It fits into all standard C-slots, regardless of the cylinder profile or make.
- Reduced storage costs, flexible machine design and easier service
- Inserting the sensor into the slot is quick and easy
- The rugged mounting holds the sensor in the required position, even when exposed to shock and vibration, and increases the reliability
- Flexible sensor settings and visualization thanks to IO-Link
Specifications
Brand
Certifications & Approvals
- CE
- cULus
- EAC
Enclosure Rating
- IP68
Switching Output
- PNP
Output Function
- NO
Communication Interface
- IO-Link
Special Feature
- Counter Function (via IO-Link)
- Interior Housing Temperature (via IO-Link)
- Visual Installation Aid/LED Indicator (Yellow)
- Power LED (Green)
Cylinder Types with Adapter
- SMC Rail ECDQ2
- SMC Rail CDQ2
Housing Length
- 12.2 mm
Supply Voltage
- 10-30 Vdc
Electrical Wiring
- DC 3-Wire
Connection Type
- Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.5 m
- Open-close position detection in pneumatic grippers
- End position detection in pneumatic miniature cylinders
- Industries: Electronics, handling and assembly (e.g. small part assembly), robotics and packagin
