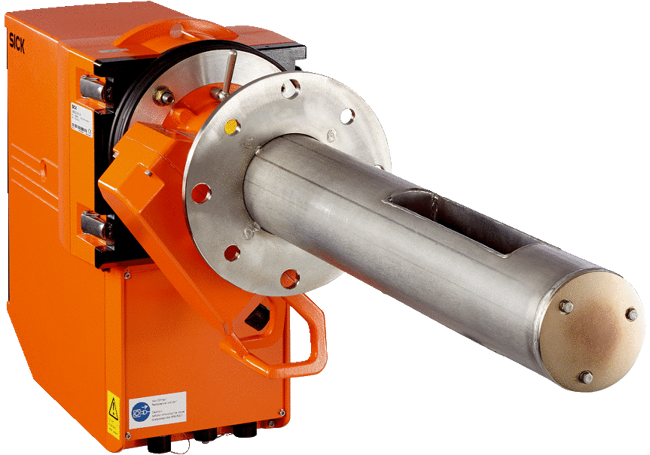

GM35 In-Situ Gas Analyzer

Brand: Sick AG
Add Product to My Catalog

Simultaneous or as individual measurement: the GM35 gas analyzer measures CO2, H2O and CO, or N2O, as well temperature and pressure – and it does this reliably, quickly, and economically.

As an in-situ gas analyzer, the GM35 detects these gas components directly in the gas stream without gas sampling.

Reliability, precision, and short response time of the GM35 offer a key advantage for efficient control loops in all CO and CO2-generating processes.
Features
  • Dynamic moisture measurement directly within the process
  • Provision of real moisture reference values
  • Accurate measured values thanks to in-situ measurement
  • Detects fast or transient process deviations
  • Representative measurement by selecting a suitable measuring probe or cross-duct version

1 - 1 of 1 Part Numbers
GM35
GM35
SICK In-Situ Gas Analyzers
1 - 1 of 1 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE

Enclosure Rating

  • IP54
  • IP67
  • IP66 / NEMA 4X
  • IP65

Measuring Range

  • N₂O: 0 to 60 ppm / 0 to 2,500 ppm
  • H₂O: 0 to 25 Vol. % / 0 to 100 Vol. %
  • CO₂: 0 to 22.5 Vol. % / 0 to 100 Vol. %
  • CO: 0 to 180 ppm / 0 to 20,000 ppm

Ambient Temperature

  • -20° to 50° C, Temperature Change Max. ± 10° C/h

Storage Temperature

  • -40° to 55° C

Humidity

  • Ambient: ≤ 96 % Relative Humidity, Non-Condensing

Power Supply

  • Power Consumption ≤ 150 VA (GPP), ≤ 350 VA (Sender/Receiver Unit)
  • Sender / Receiver Unit & GPP: 115 Vac / 230 Vac, 48 to 62 Hz

Accuracy

  • 1%

Process Pressure

  • GPP: -120 to 200 hPa
  • GMP & Reflector Unit (Cross-duct Version): -60 to 30 hPa

Materials of Construction

  • Steel ST37
  • GPP: Cermics, PTFE
  • Stainless Steel 1.4571 / 1.4539

Communication

  • Serial
  • CAN Bus
  • RS-232
