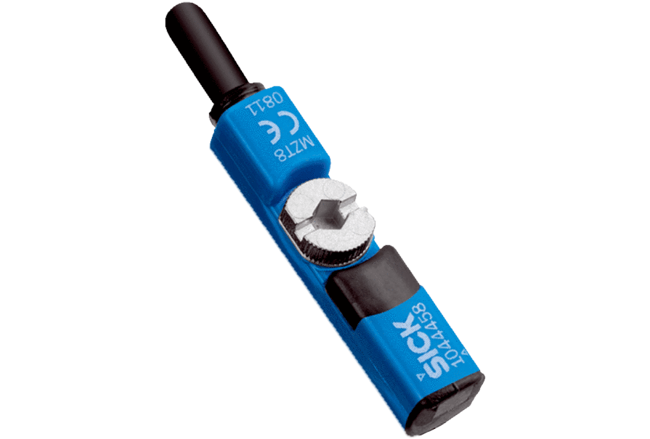

MZT8 ATEX Sensor for T-Slot Cylinders
Brand: Sick AGThe MZT8 ATEX magnetic cylinder sensor from SICK is the flexible solution for detecting the piston position in pneumatic actuators in explosion-hazardous areas.
The NAMUR version meets the most exacting standards and fulfills the requirements of the highest ATEX category 1D, 1G (dust and gas). As such it satisfies the requisite conditions for use in areas in which the atmosphere is explosive permanently, for prolonged periods of time, or frequently.
SICK has also versions in ATEX category 3D, 3G for use in areas with a lower risk of explosion. These different explosion-protected variants of the MZT8 ATEX are suitable for use in silo hatches, elevators, mills, or conveyors.
At a glance
- Can be used in all standard cylinders, linear slides, and grippers using the T-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders, and cylinders with a dovetail groove
- Drop-in mounting from above simplifies handling and assembly
- Combined fixing screw (hexagon socket screw and slotted screw)
- Variants fulfill the requirements of ATEX categories 1D, 1G and 3D, 3G
- Very short sensor housing for use in short stroke cylinders
- Enclosure rating: IP 67
- Explosion protection at the highest level: NAMUR version for ATEX category 1D, 1G
- Quick and easy mounting using an Allen key or flat-head screwdriver
- Saves time on initial installation and when replacing devices as the sensor can be easily inserted into the slot from above. The end caps of the cylinder do not have to be removed.
- Low maintenance costs as the sensor is resistant to shock and vibration, meaning it does not slide about in the slot
1 - 12 of 13 Part Numbers
1069424
- Connection Type0 - Cable, 2-Wire, 2 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KWO
1070456
- Connection Type0 - Cable, 2-Wire, 3 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KWA
1070461
- Connection Type0 - Cable, 2-Wire, 5 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KWB
1070462
- Connection Type0 - Cable, 2-Wire, 6 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KWDS01
1070463
- Connection Type0 - Cable, 2-Wire, 7 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KWDS02
1070464
- Connection Type0 - Cable, 2-Wire, 10 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KWDS03
1070466
- Connection Type0 - Cable with Connector M8, 2-Pin, with Knurled Nuts, 0.5 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KRO
1070467
- Connection Type0 - Cable with Connector M12, 2-Pin, with Knurled Nuts, 0.3 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KQO
1073405
- Connection Type0 - Cable, 3-Wire, 2 m
- Type - MZT8-03VPS-KWX
1073406
- Connection Type0 - Cable with Connector M8, 3-Pin, with Knurled Nuts, 0.3 m
- Type - MZT8-03VPS-KRX
1073407
- Connection Type0 - Cable with Connector M12, 3-Pin, with Knurled Nuts, 0.3 m
- Type - MZT8-03VPS-KQX
1073465
- Connection Type0 - Cable with Connector M8, 2-Pin, 0.3 m
- Switching Output1 - NAMUR
- Output Fuction - None
- Electrical Wiring - DC 2-Wire
- Type - MZT8-2V8-N-KPO
1 - 12 of 13 Part Numbers
Specifications
Brand
Certifications & Approvals
- CE
- ATEX
Enclosure Rating
- IP67
Output Function
- NO
Cylinder Type with Adapter
- SMC Rail ECDQ2
- SMC Rail CDQ2
- Dovetail Groove Cylinder
- Round Body Cylinder
- Tie Rod Cylinder
- Profile Cylinder
Housing Length
- 24 mm
Supply Voltage
- 10-26 Vdc
Ambient Operating Temperature
- -25° to 80° C
Overrun Distance
- 9 mm
- 3 mm
Cable Material
- PVC
- PUR
Cable Length
- 0.3 to 10 m
Electrical Wiring
- DC 3-Wire
- DC 2-Wire
Switching Output
- PNP
- NAMUR
Magnetic Field Sensitivity
- Minimum 2.6 mT
- Minimum 2.8 mT
- Silo hatches
- Elevators
- Mills
- Conveyors
