Series MP Mini-Photohelic Differential Pressure Switch/Gauge

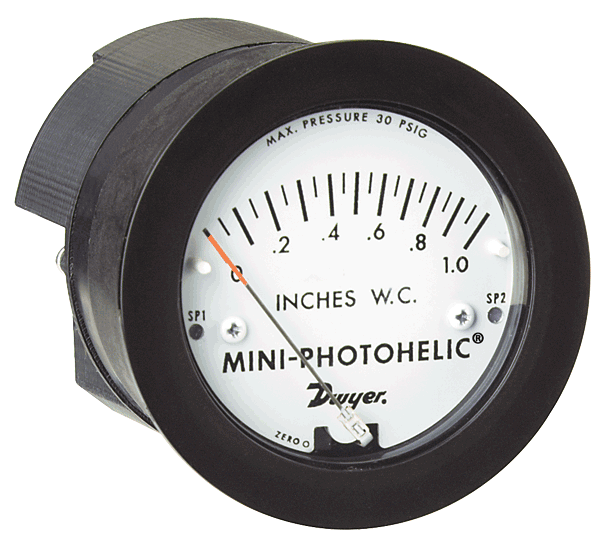

Brand: Dwyer Instruments, LLCThe Series MP Mini-Photohelic® differential pressure switch/gauge combines the time proven Minihelic® II differential pressure gauge with two SPDT switching set points.
The Mini-Photohelic® switch/gauge is designed to measure and control positive, negative, or differential pressures consisting of non-combustible and non-corrosive gases.
Gauge reading is independent of switch operation. Switching status is visible by LED indicators located on the front and rear of the gauge.
Set points are adjusted with push buttons on back of unit.
Features- Gauge reading unaffected by switch operation and will continue to read pressure even during power loss
- Visible switch status LED provides indication of set point switching state
- Compact design but with the power of larger devices can meet the same application
1 - 12 of 48 Part Numbers
MP-000-NIST
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 0.50
- Process Connection - 3/16" I.D. Tubing
- Certificates - NIST Traceable Calibration Certificate
MP-000-NPT
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 0.50
- Process Connection - 1/8" Male NPT
- Certificates - No Additional Certifications
MP-000-NPT-NIST
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 0.50
- Process Connection - 1/8" Male NPT
- Certificates - NIST Traceable Calibration Certificate
MP-001-NIST
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 1
- Process Connection - 3/16" I.D. Tubing
- Certificates - NIST Traceable Calibration Certificate
MP-001-NPT
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 1
- Process Connection - 1/8" Male NPT
- Certificates - No Additional Certifications
MP-001-NPT-NIST
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 1
- Process Connection - 1/8" Male NPT
- Certificates - NIST Traceable Calibration Certificate
MP-002-NIST
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 2
- Process Connection - 3/16" I.D. Tubing
- Certificates - NIST Traceable Calibration Certificate
MP-002-NPT
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 2
- Process Connection - 1/8" Male NPT
- Certificates - No Additional Certifications
MP-002-NPT-NIST
- Pressure Type - Inches WC
- Pressure Range - Inches WC: 0 to 2
- Process Connection - 1/8" Male NPT
- Certificates - NIST Traceable Calibration Certificate
1 - 12 of 48 Part Numbers
Specifications
Brand
Accessories
- Mounting Screws
Accuracy
- ± 5 % of Full Scale at 21.1° C (70° F)
Adjustment Type
- Push Buttons
Approvals & Certifications
- CE
- cULus
Electrical Connectors
- Accepts 22-12 AWG Wire
Electrical Rating
- 5 A at 120/240 Vac Resistive
- 5 A at 30 Vdc
Media
- Air
- Non-Combustible, Compatible Gases
NPT Connection
- 1/8” NPT Female
Power Requirement
- 24 Vdc / 24 Vac
- 50/60 Hz 4 Watts
Sensor Orientation
- Gage Face in Vertical Position
Set Point - Decreasing
- Inches WC: 0 to 20
- kPa: 0 to 3
- Pa: 0 to 500
Set Point - Increasing
- Inches WC: 0 to 20
- kPa: 0 to 3
- Pa: 0 to 500
Size
- Gauge: 4-1/8” (104.78 mm) Depth x 3-1/16˝ (77.79 mm) Diameter
Switch Type
- SPDT Relays (2)
System Pressure
- bar: 2.07
- kPa: 200
- psig: 30
Temperature Range
- -6.7° to 48.9° C (20° to 120° F)
Tube Connection
- Barbed for 3/16” I.D. Tubing (STD)
- Fume Hoods
- Dust Collection
- Pneumatic Conveying
- Clean Room
