Motorized System Model 2800-3
Brand: CDI Torque ProductsCDI has taken torque calibration to a higher level. Increase your productivity with the 2000 ft. lb. fully automatic motorized loader.
Designed for the high volume calibration laboratory that requires a high-speed, automatic torque calibration system.
In the automatic mode, the MULTITEST Motorized System Model 2800-3 will cycle, test and calibrate most torque wrenches.
With our optional kits, you can calibrate torque screwdrivers, cable tensiometers, tension and compression gauges utilizing the manual mode, (hand crank only).

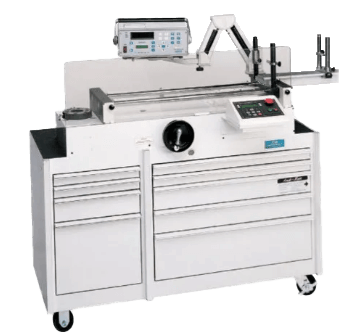

The Multitest Motorized System consists of the Monitor, Motorized Loader, Roller Cabinet and Extension Arm
Features- Automatic sensor recognition with “smart” transducers
- Range: 5 in. oz. to 2000 ft. lb. torque (bi-directional)
- Accuracy: ± 0.25% of indicated value, cw & ccw, from 10% to 100% of full scale
- Dual mode function (manual & automatic)
- Automatic speed control
- Built-in, low profile serial printer
- Date and time stamp for stored values
- Statistical analysis performed on stored data
- Emergency stop button
- Programmable manual or automatic options for clear, store and print functions
- Recall and review of stored torque values
- Track, peak, first peak, power tool modes
- RS232C port, analog output
- Eight torque measurement units: in. oz., in. lb., ft. lb., Nm, dNm, cNm, mkg and cmkg
- Six force units: ounce, pound, newton, deciNewton, kilopound and gram
- Automatic lock-up for transducer protection
- All transducers are individually serialized with matching certificate of calibration traceable to N.I.S.T.
1 - 7 of 7 Part Numbers
2000-12-02
2000-14-02
2000-400-02
2000-50-3
2000-500-02
2000-SW
2800-1
1 - 7 of 7 Part Numbers
