Pt100 Temperature/Multifunction Probes For Class 320 Kistock

Brand: Sauermann Group
Add Product to My Catalog

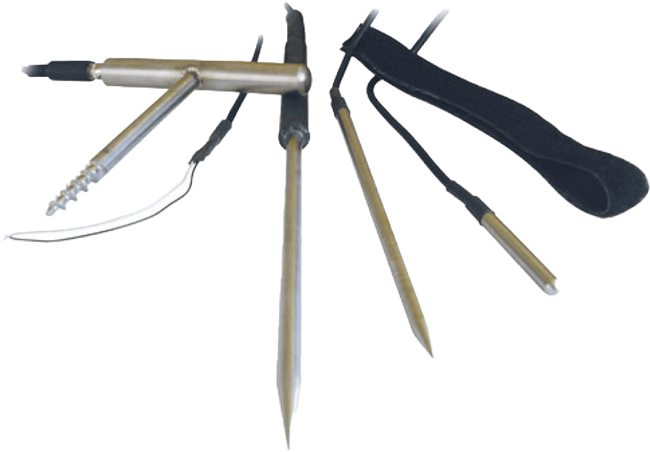

Kimo's temperature probes are useful for a wide variety of applications.

1 - 12 of 16 Part Numbers
BN 150
BN 150
Black Balls For Temperature Probes
Black ball type : BN150-45.

Diam. 150 mm with connection gland for temperature probes diam. 2 to 7 mm.

Supplied without probe.
BN 70
BN 70
Black Balls For Temperature Probes
Black ball type : BN-70.

Diam. 70 mm with connection gland for temperature probes diam. 2 to 7 mm.

Supplied without probe.
KICA-320
KICA-320
Smart adaptation cable for Pt100 temperature probes
Smart adaptation cable for Pt100 temperature probes, 3-wire, including one connection terminal block and one mini-Din male connector
KICC
KICC
Current input smart probe (range 0 to 20 mA and 4 to 20 mA), with PVC cable length 2m and mini-Din connector
Current input smart probe (range 0 to 20 mA and 4 to 20 mA), with PVC cable length 2m and mini-Din connector
KICI
KICI
Impulse smart probe made of PVC, length 2m and mini-Din connector
Impulse smart probe made of PVC, length 2m and mini-Din connector
KICT
KICT
Voltage input smart probe, range 0 to 10 V with PVC cable length 2m and mini-Din connector
Voltage input smart probe, range 0 to 10 V with PVC cable length 2m and mini-Din connector
KIPI3-150-E
KIPI3-150-E
Pt100 smart penetration probe, Class A, IP 68 protection
Pt100 smart penetration probe, Class A, IP 68 protection, stainless steel probe length 150 mm, diameter 3mm with sharp tip, with stainless steel handle diameter 10mm. Output on Teflon cable length 1m with mini-Din connector (-50 +250 °C)
KIRAM-150
KIRAM-150
Pt100 smart ambient probe, class A, IP65 protection.
Pt100 smart ambient probe, class A, IP65 protection.

Stainless steel probe length 150mm, diameter 6mm. Output on PVC cable length 2m with mini-Din connector (-40 +120 °C)
KIRGA-150
KIRGA-150
Pt100 smart immersion probe, class A, IP65 protection.
Pt100 smart immersion probe, class A, IP65 protection.

Stainless steel probe length 150mm, diameter 6mm. Output on PVC cable length 2m with mini-Din connector (-40 +120 °C)
KIRGA-50
KIRGA-50
Pt100 smart immersion probe, class A, IP65 protection.
Pt100 smart immersion probe, class A, IP65 protection.

Stainless steel probe length 50mm, diameter 6mm. Output on PVC cable length 2m with mini-Din connector (-40 +120 °C)
KIRPA-150
KIRPA-150
Pt100 smart penetration probe, class A, IP65 protection.
Pt100 smart penetration probe, class A, IP65 protection.

Stainless steel probe length 150mm, diameter 6mm with sharp tip. Output on Teflon cable length 2m with mini-Din connector (-50 +250 °C)
KIRV-320
KIRV-320
Velcro wire PT100 temperature probe
Velcro wire PT100 temperature probe, length 200mm, output on PVC cable length 2m, with Mini-Din connector (-20 +90 °C). For Class 320 Kistock
1 - 12 of 16 Part Numbers

Specifications

Brand

Units of Measure

  • °C
  • V
  • mA

Measuring Ranges

  • KIRGA-50 / KIRGA-150 / KIRAM-150: -40.00° C to 120.00° C
  • KIPPA-150 / KIPI3-150-E / KITI3-100-E / KITBI3-100-E: -50.00° C to 250.00° C
  • KIRV-320: -20.00° C to 90.00° C
  • KICA-320: -200.00° C to 600.00° C

Parameters

  • Temperature

Documentation

Datasheet
