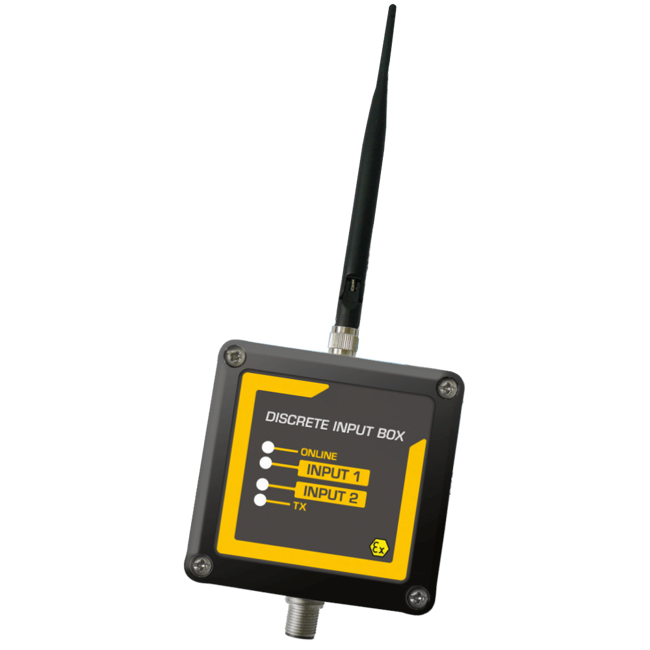

Digital Input Box
Brand: Rotork PLC
The Input Box (DIB) consists of a wireless monitoring module using the most advanced 2.4 HGz 802.15.4 communications protocols.
It has 3 digital dry contact inputs and one Analog input (future option). The DIB is a non-routing sleepy device.
The DIB is housed in an IP65 industrial box (IP66 for non-ATEX) and external antenna. It is powered by four 1/2 AA batteries type Tadiran TL4902 that power the unit for more than 8 years assuming not more than 10 input changes per hour.
Whenever one of the inputs changes state, the DIB reports the state of the three dry contact inputs and the timing between the dry contact events.
Specifications
Brand
Antenna
- F-SMA Connector
- Optional F-SMA Connector Open
Approvals & Certifications
- ATEX
- IEEE
Battery Life
- 8 Years
Communication
- Zigbee Protocol
Enclosure, Body Material
- Glass-Fibre-Reinforced
- Halogen-free
- Polyester
Environmental Protection
- IP65
- IP66
Frequency
- 125 kHz
LF Range (with O.D.)
- 1 Meter
Mounting
- Pipe
- Surface
Operating Temperature
- -40° to 80° C (-40° to 176° F)
Power
- 3 dBm
Power Requirement
- Lithium Batteries
Resistance
- 1,000 ohms
Sensitivity
- 2 mV
Update Time
- 5 to 3,600 seconds
