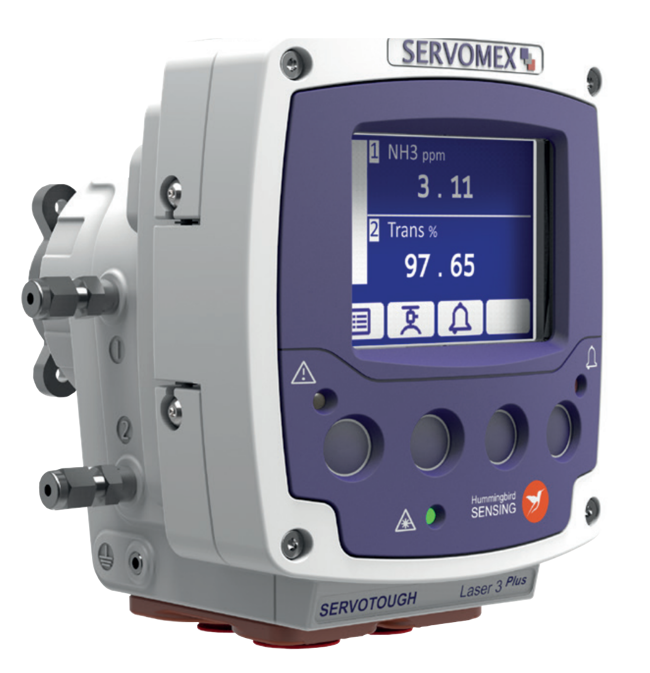

SERVOTOUGH Laser 3 Plus DeNOx Ammonia Tunable Diode Laser Single Path Spectrometer
Brand: SERVOMEXThe SERVOTOUGH Laser 3 Plus is a revolution in TDL Absorption Spectroscopy analysis: a highly compact gas monitor for in-situ cross stack applications, which delivers exceptional performance benefits in a compact design.
Servomex’s pioneering approach to design has produced an analyzer that occupies a footprint up to 1/10th the size of competitor products and includes an integrated display and key pad. This provides instant benefits in terms of installation ease and flexibility.
The SERVOTOUGH Laser 3 Plus delivers exceptional TDL performance with a fast response to Ammonia in a wide range of applications.
Utilizing the latest Wavelength Modulated Spectroscopy (WMS) measurement techniques with advanced Servomex signal processing, the Laser 3 Plus provides stable and repeatable results with minimal installation and maintenance costs.
Specifications
Brand
Approvals & Certifications
- ATEX Category 3 (Gases), Category 21 (Dust)
- CE
- EMC
- IECEx Zone 2 & Zone 21
- LVD
Communication
- Modbus TCP/IP
Environmental Protection
- IP66
- NEMA 4X
Flange Size - 1” (DN 25)
- 1” (DN 25) - Unrated ANSI
Flange Size - 2” (DN 50)
- 2” (DN 50) - Unrated ANSI
Flange Size - 3” (DN 80)
- 3” (DN 80) - Unrated ANSI
Flange Size - 4” (DN 100)
- 4” (DN 100) - Unrated ANSI
Operating Temperature
- -20° to 65° C (-4° to 149° F)
Power Supply
- 24 Vdc
Range
- 0 to 15 ppm to 0 to 150 ppm
Wetted Materials
- Sample Wetted Seal: Chemraz 505
- Sample Wetted Seal: Viton 70
