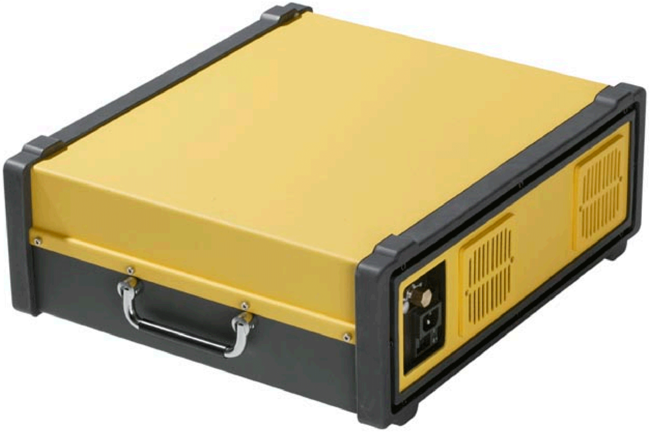

DX4015 FTIR Gas Analyzer
Brand: Gasmet TechnologiesGasmet On-site Series includes portable multicomponent gas analyzers for demanding applications. The Gasmet DX4015 features a Fourier transform infrared (FTIR) spectrometer, a temperature-controlled sample cell with a built-in pump, and signal processing electronics. The sample cell can be heated to 50° C. Sample cell absorption path length is selected according to the application. This analyzer offers versatility and high performance for different applications.
The Gasmet DX4015 is designed for on-site measurements at low concentrations in ambient air. Typical usage areas include industrial hygiene and emergency response situations. The Gasmet DX4015 is factory calibrated using certified single component calibration gases. There is no need for the user to do any span calibrations after that. The user can also easily configure the analyzer for a new set of compounds.
Specifications
Brand
Approvals & Certifications
- CE Label: According to EMI Guideline 89/336/EC
Consumption
- 300 W, Max.
Enclosure, Body Material
- Aluminum
Operating Temperature
- Long-term: 5° to 30° C (41° to 86° F)
- Short Term: 0° to 40° C (32° to 104° F)
Power Supply
- 100-115 or 230 Vac, 50/60 Hz
- 12 Vdc
Storage Temperature
- -20° to 60° C (-4° to 140° F)
