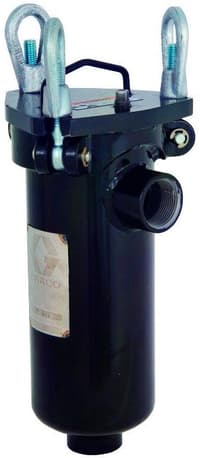

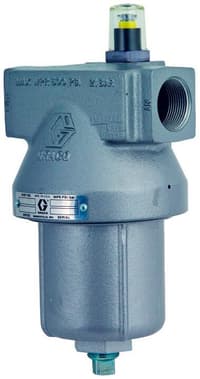

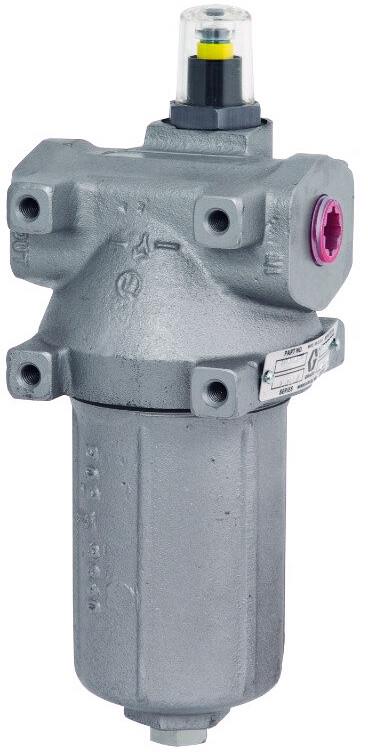

Fluid Filters
Brand: Graco, Inc
Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging.
Graco filters are designed for maximum flow and quick screen replacement. Most Graco metal filter elements are fabricated from stainless steel to resist corrosion, prevent screen rupture and increase operating life.
Features- Maximum delivery ranges from 6 to 30 gpm (23 to 114 lpm).
- Maximum pressures from 300 to 7,400 psi (21 to 510 bar, 2.1 to 51.0 MPa)
- Aluminum, steel and stainless steel housing models available.
- Filter sizes from 30 to 200 screen mesh.
Specifications
Brand
Filter Area
- 120 cm²
Maximum Working Pressure - All Other Models
- 350 bar / 35 MPa
Maximum Working Pressure - Model 237069
- 500 bar / 50 MPa
Surge Tank Volume
- 450 ml
Weight - Model 214623
- 13 kg
Weight - Model 214624
- 14 kg
Weight - Model 214724
- 6 kg
Weight - Model 214725
- 15 kg
Weight - Model 214726
- 15 kg
Weight - Model 237069
- 4.5 kg
Weight - Model 238620
- 4.5 kg
Weight - Model 238623
- 14 kg
Weight - Model 289310
- 6 kg
Wetted Parts
- Stainless Steel, Zinc-Plated Steel, Nylon, PTFE, Fluoroelastomer
Documentation
Catalogs
- 345020EN Finishing Accessories Catalog Čeština pdf 4.9 MB
- 345020EN Finishing Accessories Catalog Chinese pdf 14.8 MB
- 345020EN Finishing Accessories Catalog Deutsch pdf 6.9 MB
- 345020EN Finishing Accessories Catalog En pdf 6.4 MB
- 345020EN Finishing Accessories Catalog Español pdf 7.3 MB
- 345020EN Finishing Accessories Catalog French pdf 7.0 MB
- 345020EN Finishing Accessories Catalog Italiano pdf 6.6 MB
- 345020EN Finishing Accessories Catalog Japanese pdf 11.0 MB
- 345020EN Finishing Accessories Catalog Korean pdf 11.3 MB
- 345020EN Finishing Accessories Catalog Polish pdf 5.9 MB
- 345020EN Finishing Accessories Catalog Russian pdf 5.5 MB
Instructions
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Danish pdf 774 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Deutsch pdf 782 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio En pdf 400 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Español pdf 782 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Finnish pdf 770 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio French pdf 774 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Italiano pdf 774 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Nederlands pdf 774 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Norwegian pdf 560 KB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Português pdf 2.0 MB
- 307296T High Pressure Surge Tanks and Fluid Filters Instructio Svenska pdf 778 KB
- 311775H Low Pressure Fluid Filters Instructions Parts List En Deutsch pdf 222 KB
- 311775H Low Pressure Fluid Filters Instructions Parts List En En pdf 221 KB
