SOR Pressure Switch, Non-Adjustable Sub Mini Hermet

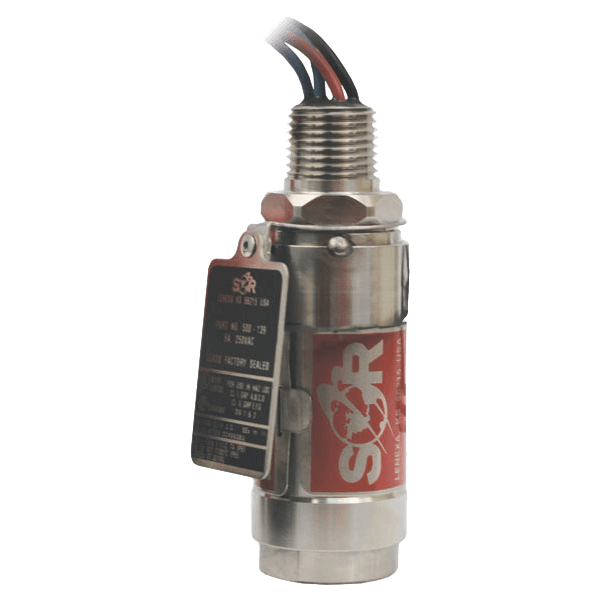

Non-Adjustable Sub Mini Hermet Pressure Switch

Brand: SOR Inc
Add Product to My Catalog

The Sub Mini Hermet also comes in a Factory Pre-set Non-adjustable model.

These field mounted instruments are suited for compact areas and hostile environments.

A UL Listed, CSA Certified, and SAA Approved hermetically sealed explosion proof switch capsule is provided in a rugged 316 stainless steel housing for harshest service in hazardous locations.

View_Details

Specifications

Brand

Adjustment Type

  • Factory Set (Pre-Set)

Ambient Temperature Range

  • -40° to 75° C (-40° to 167° F)

Approvals & Certifications

  • Calibration
  • Compliance/Conformance
  • Dielectric Test
  • Hydrostatic Pressure Test
  • Inspection Report
  • Insulation Resistance
  • SIL 1 & 2 Certification
  • Typical Material of Wetted Parts

Approvals & Certifications

  • CSA Hazardous Location: Class I, Groups A, B, C, D, Class II, Groups E, F, G, Divisions 1 & 2
  • IEC 61508
  • RTN
  • SAA Hazardous Location: Ex S Zone 2 IIC T4 IP65, Ex TD A22 T105° C IP65
  • UL Hazardous Location: Class I, Groups A, B, C, D, Class II, Groups E, F, G, Divisions 1 & 2

Deadband

  • Typical psi: 3 to 50 (kPa: 20 to 350, bar: 0.2 to 3.5)

Diaphragm Material

  • Primary Diaphragm: 316 Stainless Steel

Electrical - Free Leads

  • 18 AWG Wire Leads (Color-Coded & Marked)

Electrical Connectors

  • 1/2” NPT Male
  • 18” Stranded Wire Leads

Electrical Rating

  • 0.5 A at 125 Vdc
  • 5 A at 250 Vac
  • 5 A at 30 Vdc

Enclosure, Body Material

  • 316 Stainless Steel (Contains Explosion-proof, Hermetically Sealed Switching Element)

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X

Name Plate, Tag Material

  • 304 Stainless Steel
  • Fiber

NPT Connection

  • Pressure Port: 1/4” NPT Female

O-Ring Material

  • Viton

Overpressure & Static Pressure Limits

  • Overpressure psi: 1,500 to 5,000 (kPa: 10,000 to 34,000, bar: 100 to 340)

Pressure Range

  • psi: 6 to 500 (kPa: 40 to 3,500, bar: 0.4 to 35)

Process Connection Material

  • Pressure Port: 316 Stainless Steel

Process Temperature

  • 0° to 204° C (32° to 400° F)

Proof Pressure

  • psi: 2,500 to 6,000 (kPa: 17,000 to 41,000, bar: 170 to 410)

Set Point - Decreasing

  • bar: 0.4 to 35
  • kPa: 40 to 3,500
  • psi: 6 to 500

Set Point - Increasing

  • bar: 0.4 to 35
  • kPa: 40 to 3,500
  • psi: 6 to 500

Switch Type

  • SPDT

Documentation

Data Sheets
