Features

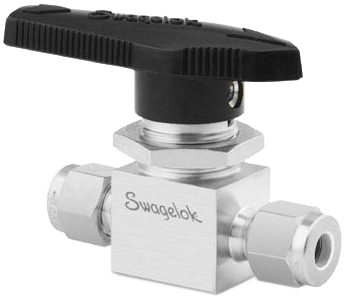

  • Style: One-Piece Straight (Through) Pattern Instrumentation Ball Valve
  • Valve Series: On-Off (2-Way) 41, 42, 43, 44, 45
  • Body Material: Brass, Alloy 400
  • Packing Material: PTFE
  • End Connections: 1/16" to 3/4"
  • Maximum Pressure Rating: 2,500 psig, 17,237 kPa, 206 bar
  • Optional: Flow Path and Vent Port

Specifications

BSP Connection

  • 1/2” Female ISO /BSPT
  • 1/4” BSPT Female ISO
  • 3/8” Female ISO /BSPT

Direct Mount

  • No

Enclosure, Body Material

  • Alloy 400 or Monel
  • Brass

Flow Rate

  • 0.05 to 12 Cv

NPT Connection

  • 1/2” NPT Female
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 1/8” NPT Female
  • 3/8” NPT Female

Options

  • Flow Paths
  • Production Test
  • Vent Port

Orifice Size

  • 0.040”
  • 0.049”
  • 0.093”

Packing Material

  • PFA
  • PTFE
  • UHWMPE

Pressure Rating

  • bar: 34.47 to 172.4
  • kPa: 3,447 to 17,237
  • psig: 500 to 2,500

Process Temperature

  • 10° to 65° C (50° to 150° F)

Tube Connection

  • 1/16” Fractional Swagelok Tube Fitting
  • 1/2” Fractional Swagelok Tube Fitting
  • 1/4” Fractional Swagelok Tube Fitting
  • 1/8” Fractional Swagelok Tube Fitting
  • 10 mm Metric Swagelok Tube Fitting
  • 12 mm Metric Swagelok Tube Fitting
  • 3 mm Metric Swagelok Tube Fitting
  • 3/4” Fractional Swagelok Tube Fitting
  • 3/8” Fractional Swagelok Tube Fitting
  • 6 mm Metric Swagelok Tube Fitting
  • 8 mm Metric Swagelok Tube Fitting

Valve Type

  • Manual

VCR / VCO Connection

  • 1/2” VCR Male Fitting
  • 1/4” Integral Male VCR
  • 1/4” VCO
