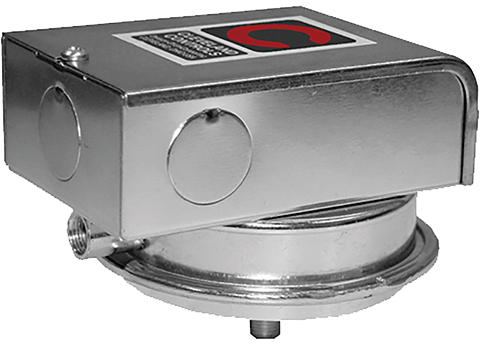

Series GRFS Differential Pressure Gas Flow Sensing Switches

Brand: Cleveland Controls
Add Product to My Catalog

Series GRFS switches are for use with natural, manufactured, or LP gas as the measured media in applications such as furnaces, package burners, and other fuel-burning equipment.

They have field-adjustable or factory calibrated set points between 0.18″ wc and 5″ wc. Numerous standard configurations are available, including mounting choices, sample line connector styles , terminal styles , and open or enclosed terminals.

Many options are available also, including manual reset, set point indication, alarm pilot light, time delayed actuation, electronic dual set points, and NEMA-rated enclosures.

Specifications

Brand

Mounting Position

  • Surface mount with the diaphragm in any vertical plane. Neither the gas nor the vent connection should point upward.

Standard Set Point Ranges

  • 0.18 ± 0.05 to 2.0 InchWC
  • 0.18 ± 0.05 to 5.0 InchWC

Field Adjustable "Operate Ranges"

  • 0.23 to 2.0 InchWC
  • 0.23 to 5.0 InchWC

Field Adjustable "Release Ranges"

  • 0.13 to 1.9 InchWC wc
  • 0.13 wc to 4.7 Inch WC

Approximate Switch Differentials

  • For 2.0”wc set point range: progressive, increasing from 0.05 ± 0.02” wc at minimum set point to approximate- ly 0.1” wc at Max. set point.
  • For 5.0”wc set point range: progressive, increasing from 0.05 ± 0.02” wc at minimum set point to approxi- mately 0.3” wc at Max. set point.

Measured Media

  • Air or natural, manufactured, LP, or other gas that will not degrade nitrile

Maximum Pressure

  • 1/2 psi (0.03 bar)

Operating Temperature Range

  • 0° to 190° F (-18.0° to 882° C)

Life

  • 100,000 cycles Min. at 1/2 psi Max. pressure each cycle and at Max. rated electrical load

Electrical Rating

  • 300 VA pilot duty at 115 to 277 Vac, 15 amp noninductive to 277 Vac, 60 Hz

Contact Arrangement

  • SPST-NO
  • SPST-NC
  • SPDT

Electrical Connections

  • Screw terminals with cup washers

Sample Line Connectors

  • Externally threaded 7⁄16” -24 UNS 2A or 7⁄16” -20 UNF 2A thread with nuts and self-aligning ferrules
  • 1/8”-27 NPT Male and Female connectors
  • 1/4”-18 Female thread in combination with 1/8”-27 NPT Female connectors

Approvals

  • UL & cUL. CSA pending

Shipping Weight

  • < 1 lb
