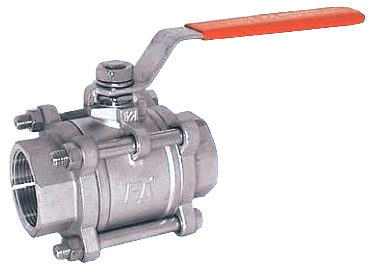

KUG-ZE Manual Stainless Steel Ball Valve
Brand: KOBOLD Instruments, Inc
Design
Three-piece, threaded joint construction with full cylindric bore. Stamping as per AD approval certificate A 4.
Technical Details
- Connection: G 1/4" Female to G 2", Weld Ends DN 10 to DN 50
- Max. Pressure: PN 64 (928.2 psi, 6,400 kPa, 64 bar)
- Nominal Pressure: PN 64 (928.2 psi, 6,400 kPa, 64 bar) / PN 40 (580.2 psi, 4,000 kPa, 40 bar)
- Temperature Range: -30° to 180° C (-22° to 356° F)
- Operation: 90° Rotation of Handle
1 - 12 of 15 Part Numbers
KUG-ZER 08
- Connection Style - Threaded
- Process Connection - G 1/4" Female
KUG-ZER 10
- Connection Style - Threaded
- Process Connection - G 3/8" Female
KUG-ZER 15
- Connection Style - Threaded
- Process Connection - G1/2" Female
KUG-ZER 20
- Connection Style - Threaded
- Process Connection - G 3/4" Female
KUG-ZER 25
- Connection Style - Threaded
- Process Connection - G 1" Female
KUG-ZER 32
- Connection Style - Threaded
- Process Connection - G1-1/4" Female
KUG-ZER 40
- Connection Style - Threaded
- Process Connection - G1-1/2" Female
KUG-ZER 50
- Connection Style - Threaded
- Process Connection - G 2" Female
KUG-ZEW 10
- Connection Style - Weld Ends
- Process Connection - DN 10
KUG-ZEW 15
- Connection Style - Weld Ends
- Process Connection - DN 15
KUG-ZEW 20
- Connection Style - Weld Ends
- Process Connection - DN 20
KUG-ZEW 25
- Connection Style - Weld Ends
- Process Connection - DN 25
1 - 12 of 15 Part Numbers
Specifications
Brand
Approvals & Certifications
- AD Approval Certificate A 4
Ball Gasket Material
- PTFE Glass-Fiber Reinforced
Ball Material
- 316 Stainless Steel
BSP Connection
- G 1” Female
- G 1/2” Female
- G 1/4” Female
- G 1-1/2” Female
- G 1-1/4” Female
- G 2” Female
- G 3/4” Female
- G 3/8” Female
Direct Mount
- No
Enclosure, Body Material
- 316 Stainless Steel
Handle Assembly Material
- 304 Stainless Steel, Plastic Sheathed
Nominal Pressure
- PN 64 (928.2 psi, 6,400 kPa, 64 bar) / PN 40 (580.2 psi, 4,000 kPa, 40 bar)
- psi: 580.2 (bar: 40, kPa: 4,000)
Operation
- 90° Rotation of the Handle
Port
- Full
Spindle Gasket Material
- PTFE
Temperature Range
- -30° to 180° C (-22° to 356° F)
Valve Type
- Manual
Welded Connection
- DN 10 Weld End
- DN 15 Weld End
- DN 20 Weld End
- DN 25 Weld End
- DN 32 Weld End
- DN 40 Weld End
- DN 50 Weld End
