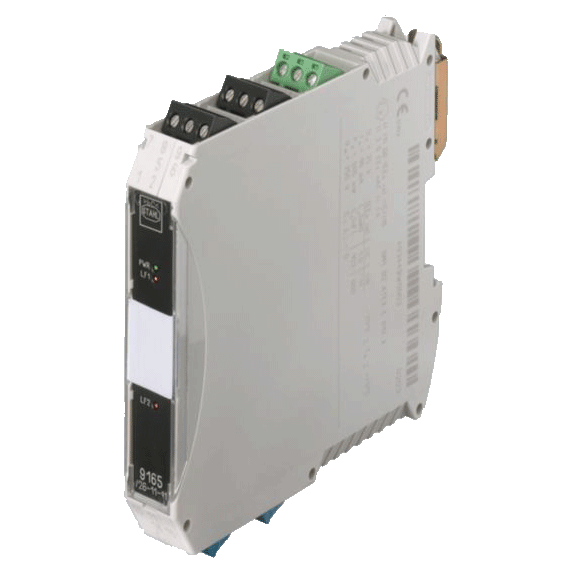

Isolating Repeater Series 9165

Isolating Repeater Series 9165

Brand: R. STAHL AG
Add Product to My Catalog

9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions.

The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
Features
  • Compact one- and two-channel Ex i output isolating repeater
  • Wire-breakage and short-circuit monitoring system, which can be disconnected and features a signaling contact
  • Can be used up to SIL 2 (IEC/EN 61508)

1 - 7 of 7 Part Numbers
201270
201270
R. STAHL Isolating Repeater Ex I Field Circuit ISpac
Compact one- and two-channel Ex i output isolating repeater

wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact

can be used up to SIL 2 (IEC/EN 61508)

Ambient Conditions

  • Ambient temperature - -20 °C ... +70 °C (Single device) -20 °C ... +60 °C (Group assembly)
  • Ambient temperature max. - +70 °C
  • Ambient temperature max. note - Single device
  • Ambient temperature max. note 2 - Group assembly
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -20 °C
  • Ambient temperature min. 2 - -20 °C
  • Ambient temperature min. note - Single device
  • Ambient temperature min. note 2 - Group assembly
  • Electromagnetic compatibility - Tested to the following standards and regulations: EN 61326-1 Use in industrial environment
  • Relative humidity max. - 95%
  • Storage temperature - -40 °C ... +80 °C
  • Storage temperature max. - +80 °C
  • Storage temperature min. - -40 °C
  • Use at the height of - < 2000 m

Auxiliary power

  • Auxiliary power - 24 V DC
  • Auxiliary power voltage range - 18,0 - 31,2 V
  • Nominal current - 55.00 mA
  • Nominal voltage - 24 V DC
  • Polarity reversal protection - yes
  • Power consumption - 1.30 W
  • Power dissipation max. - 1.10 W
  • Voltage range residual ripple - ≤ 3,6 VSS

Electrical Data

  • Number of channels - 1
  • Open-circuit voltage U a - 0,00 V

Explosion Protection

  • Application range (zones) - 22
  • ATEX dust certificate - DMT 03 ATEX E 012 X
  • ATEX gas certificate - DMT 03 ATEX E 012 X
  • Certificate EAC - TS RU S-DE.GB04.B.00353
  • Certificates - ATEX (BVS), Canada (FM), EAC (STV), IECEx (BVS), India (PESO), Korea (KTL), Russia (Meteorological certificate), SIL (exida), USA (FM)
  • Dust explosion protection ATEX - II (1) D [Ex ia Da] IIIC
  • Dust explosion protection EAC - [Ex ia Da] IIIC
  • Dust explosion protection IECEx - [Ex ia Da] IIIC
  • Ex interface in Division NEC 500 - (Class I, II, III) 1, 2
  • Ex interface zone - 1, 2, 20, 21, 22
  • Gas explosion protection ATEX - II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc
  • Gas explosion protection EAC - 2 Ex nA nC [ia Ga] IIC T4 Gc X
  • Gas explosion protection IECEx - Ex nA nC [ia Ga] IIC T4 Gc
  • IECEX dust certificate - IECEx BVS 10.0011 X
  • IECEX gas certificate - IECEx BVS 10.0011 X
  • Installation in Division NEC 500 - (Class I, II, III) 2
  • Ship approval - CCS, DNVGL

General

  • Functional Description - 9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
  • Highlights - Compact one- and two-channel Ex i output isolating repeater wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact can be used up to SIL 2 (IEC/EN 61508)
  • Product Description - Isolating repeater Ex i field circuit ISpac
  • Product Type - 9165/16-11-11s
  • WebCode - 9165A

Input

  • Input - 0/4 ... 20 mA with HART
  • Input functional range - 0 - 24 mA
  • Input resistance - 175 / 400 ohms
  • input signal - 0/4 - 20 mA with HART
  • Message of line fault and Auxilliary power failure - - Contact (30 V / 100 mA) closed to ground in case of fault - pac-Bus, floating contact (30 V / 100 mA)

Mechanical Data

  • Connection cross-section - 0.2-2.5 mm² rigid 0.25-2.5 mm² flexible core end sleeve 0.2-2.5 mm² flexible
  • Degree of protection (IP) - IP30
  • Enclosure material - Polyamide
  • Fire resistance (UL 94) - V0
  • Grid dimension - 17.60 mm
  • Terminal degree of protection (IP) - IP20
  • Weight - 0.180 kg

Mounting / Installation

  • Connection type - Screw terminal
  • Mounting position - horizontal vertical
  • Mounting type - DIN rail (NS35/15, NS35/7.5)

Output

  • LFD relay - Yes
  • Load resistance R L - 0 ... 800 Ohm
  • Load resistance R L max. - 800.00 Ω
  • Output - 0/4 ... 20 mA with HART
  • Output functional range - 0.0 - 24.0 mA
  • output signal - 0/4 ... 20 mA with HART
  • Settling time 10 … 90 % - ≤ 100 µs
  • Switching capacity fault message contact - 30 V / 100 mA

Safety Data

  • Internal capacitance C i - negligible
  • Internal inductance L i - negligible
  • Max. Current I o - 96.0 mA
  • Max. permissible external capacitance C o for IIB - 0.800 μF
  • Max. permissible external capacitance C o for IIC - 0.103 μF
  • Max. permissible external inductance L o for IIB - 11.000 mH
  • Max. permissible external inductance L o for IIC - 1.900 mH
  • Max. Power P o - 605.000 mW
  • Max. Voltage U o - 25.60 V
  • Safety-related maximum voltage - 253 V
201271
201271
R. STAHL Isolating Repeater Ex I Field Circuit ISpac
Compact one- and two-channel Ex i output isolating repeater

wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact

can be used up to SIL 2 (IEC/EN 61508)

Ambient Conditions

  • Ambient temperature - -20 °C ... +70 °C (Single device) -20 °C ... +60 °C (Group assembly)
  • Ambient temperature max. - +70 °C
  • Ambient temperature max. note - Single device
  • Ambient temperature max. note 2 - Group assembly
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -20 °C
  • Ambient temperature min. 2 - -20 °C
  • Ambient temperature min. note - Single device
  • Ambient temperature min. note 2 - Group assembly
  • Electromagnetic compatibility - Tested to the following standards and regulations: EN 61326-1 Use in industrial environment
  • Relative humidity max. - 95%
  • Storage temperature - -40 °C ... +80 °C
  • Storage temperature max. - +80 °C
  • Storage temperature min. - -40 °C
  • Use at the height of - < 2000 m

Auxiliary power

  • Auxiliary power - 24 V DC
  • Auxiliary power voltage range - 18,0 - 31,2 V
  • Nominal current - 55.00 mA
  • Nominal voltage - 24 V DC
  • Polarity reversal protection - yes
  • Power consumption - 1.30 W
  • Power dissipation max. - 1.10 W
  • Voltage range residual ripple - ≤ 3,6 VSS

Electrical Data

  • Number of channels - 1
  • Open-circuit voltage U a - 0,00 V

Explosion Protection

  • Application range (zones) - 22
  • ATEX dust certificate - DMT 03 ATEX E 012 X
  • ATEX gas certificate - DMT 03 ATEX E 012 X
  • Certificate EAC - TS RU S-DE.GB04.B.00353
  • Certificates - ATEX (BVS), Canada (FM), EAC (STV), IECEx (BVS), India (PESO), Korea (KTL), Russia (Meteorological certificate), SIL (exida), USA (FM)
  • Dust explosion protection ATEX - II (1) D [Ex ia Da] IIIC
  • Dust explosion protection EAC - [Ex ia Da] IIIC
  • Dust explosion protection IECEx - [Ex ia Da] IIIC
  • Ex interface in Division NEC 500 - (Class I, II, III) 1, 2
  • Ex interface zone - 0, 1, 2, 20, 21, 22
  • Gas explosion protection ATEX - II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc
  • Gas explosion protection EAC - 2 Ex nA nC [ia Ga] IIC T4 Gc X
  • Gas explosion protection IECEx - Ex nA nC [ia Ga] IIC T4 Gc
  • IECEX dust certificate - IECEx BVS 10.0011 X
  • IECEX gas certificate - IECEx BVS 10.0011 X
  • Installation in Division NEC 500 - (Class I, II, III) 2
  • Ship approval - CCS, DNVGL

General

  • Functional Description - 9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
  • Highlights - Compact one- and two-channel Ex i output isolating repeater wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact can be used up to SIL 2 (IEC/EN 61508)
  • Product Description - Isolating repeater Ex i field circuit ISpac
  • Product Type - 9165/16-11-11k
  • Title Product Variant Technical Data - 9165/16-11-11k HART mA-Isolating repeat.
  • WebCode - 9165A

Input

  • Input - 0/4 ... 20 mA with HART
  • Input functional range - 0 - 24 mA
  • Input resistance - 175 / 400 ohms
  • input signal - 0/4 - 20 mA with HART
  • Message of line fault and Auxilliary power failure - - Contact (30 V / 100 mA) closed to ground in case of fault - pac-Bus, floating contact (30 V / 100 mA)

Mechanical Data

  • Degree of protection (IP) - IP30
  • Enclosure material - Polyamide
  • Fire resistance (UL 94) - V0
  • Grid dimension - 17.60 mm
  • Terminal degree of protection (IP) - IP20
  • Weight - 130.000 kg

Mounting / Installation

  • Connection type - Spring clamp terminal
  • Mounting position - horizontal vertical
  • Mounting type - NS35/15, NS35/7.5 DIN rail

Output

  • LFD relay - Yes
  • Load resistance R L - 0 ... 800 Ohm
  • Load resistance R L max. - 800.00 Ω
  • Output - 0/4 ... 20 mA with HART
  • Output functional range - 0.0 - 24.0 mA
  • output signal - 0/4 ... 20 mA with HART
  • Settling time 10 … 90 % - ≤ 100 µs
  • Switching capacity fault message contact - 30 V / 100 mA

Safety Data

  • Internal capacitance C i - negligible
  • Internal inductance L i - negligible
  • Max. Current I o - 96.0 mA
  • Max. permissible external capacitance C o for IIB - 0.800 μF
  • Max. permissible external capacitance C o for IIC - 0.103 μF
  • Max. permissible external inductance L o for IIB - 11.000 mH
  • Max. permissible external inductance L o for IIC - 1.900 mH
  • Max. Power P o - 605.000 mW
  • Max. Voltage U o - 25.60 V
  • Safety-related maximum voltage - 253 V
201272
201272
R. STAHL Isolating Repeater Ex I Field Circuit ISpac
Compact one- and two-channel Ex i output isolating repeater

wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact

can be used up to SIL 2 (IEC/EN 61508)

Ambient Conditions

  • Ambient temperature - -20 °C ... +70 °C (Single device) -20 °C ... +60 °C (Group assembly)
  • Ambient temperature max. - +70 °C
  • Ambient temperature max. note - Single device
  • Ambient temperature max. note 2 - Group assembly
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -20 °C
  • Ambient temperature min. 2 - -20 °C
  • Ambient temperature min. note - Single device
  • Ambient temperature min. note 2 - Group assembly
  • Electromagnetic compatibility - Tested to the following standards and regulations: EN 61326-1 Use in industrial environment
  • Relative humidity max. - 95%
  • Storage temperature - -40 °C ... +80 °C
  • Storage temperature max. - +80 °C
  • Storage temperature min. - -40 °C
  • Use at the height of - < 2000 m

Auxiliary power

  • Auxiliary power - 24 V DC
  • Auxiliary power voltage range - 18,0 - 31,2 V
  • Nominal current - 90.00 mA
  • Nominal voltage - 24 V DC
  • Polarity reversal protection - yes
  • Power consumption - 2.20 W
  • Power dissipation max. - 1.80 W
  • Voltage range residual ripple - ≤ 3,6 VSS

Electrical Data

  • Number of channels - 2
  • Open-circuit voltage U a - 0,00 V

Explosion Protection

  • Application range (zones) - 22
  • ATEX dust certificate - DMT 03 ATEX E 012 X
  • ATEX gas certificate - DMT 03 ATEX E 012 X
  • Certificate EAC - TS RU S-DE.GB04.B.00353
  • Certificates - ATEX (BVS), Canada (FM), EAC (STV), IECEx (BVS), India (PESO), Korea (KTL), Russia (Meteorological certificate), SIL (exida), USA (FM)
  • Dust explosion protection ATEX - II (1) D [Ex ia Da] IIIC
  • Dust explosion protection EAC - [Ex ia Da] IIIC
  • Dust explosion protection IECEx - [Ex ia Da] IIIC
  • Ex interface in Division NEC 500 - (Class I, II, III) 1, 2
  • Ex interface zone - 1, 2, 20, 21, 22
  • Gas explosion protection ATEX - II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc
  • Gas explosion protection EAC - 2 Ex nA nC [ia Ga] IIC T4 Gc X
  • Gas explosion protection IECEx - Ex nA nC [ia Ga] IIC T4 Gc
  • IECEX dust certificate - IECEx BVS 10.0011 X
  • IECEX gas certificate - IECEx BVS 10.0011 X
  • Installation in Division NEC 500 - (Class I, II, III) 2
  • Ship approval - CCS, DNVGL

General

  • Functional Description - 9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
  • Highlights - Compact one- and two-channel Ex i output isolating repeater wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact can be used up to SIL 2 (IEC/EN 61508)
  • Product Description - Isolating repeater Ex i field circuit ISpac
  • Product Type - 9165/26-11-11s
  • Title Product Variant Technical Data - 9165/26-11-11s HART mA-Isolating repeat.
  • WebCode - 9165A

Input

  • Input - 0/4 ... 20 mA with HART
  • Input functional range - 0 - 24 mA
  • Input resistance - 175 / 400 ohms
  • input signal - 0/4 - 20 mA with HART
  • Message of line fault and Auxilliary power failure - - Contact (30 V / 100 mA) closed to ground in case of fault - pac-Bus, floating contact (30 V / 100 mA)

Mechanical Data

  • Connection cross-section - 0.2-2.5 mm² rigid 0.25-2.5 mm² flexible core end sleeve 0.2-2.5 mm² flexible
  • Degree of protection (IP) - IP30
  • Enclosure material - Polyamide
  • Fire resistance (UL 94) - V0
  • Grid dimension - 17.60 mm
  • Terminal degree of protection (IP) - IP20
  • Weight - 0.190 kg

Mounting / Installation

  • Connection type - Screw terminal
  • Mounting position - horizontal vertical
  • Mounting type - DIN rail (NS35/15, NS35/7.5)

Output

  • LFD relay - Yes
  • Load resistance R L - 0 ... 800 Ohm
  • Load resistance R L max. - 800.00 Ω
  • Output - 0/4 ... 20 mA with HART
  • Output functional range - 0.0 - 24.0 mA
  • output signal - 0/4 ... 20 mA with HART
  • Settling time 10 … 90 % - ≤ 100 µs
  • Switching capacity fault message contact - 30 V / 100 mA

Safety Data

  • Internal capacitance C i - negligible
  • Internal inductance L i - negligible
  • Max. Current I o - 96.0 mA
  • Max. permissible external capacitance C o for IIB - 0.800 μF
  • Max. permissible external capacitance C o for IIC - 0.103 μF
  • Max. permissible external inductance L o for IIB - 11.000 mH
  • Max. permissible external inductance L o for IIC - 1.900 mH
  • Max. Power P o - 605.000 mW
  • Max. Voltage U o - 25.60 V
  • Safety-related maximum voltage - 253 V
201273
201273
R. STAHL Isolating Repeater Ex I Field Circuit ISpac
Compact one- and two-channel Ex i output isolating repeater

wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact

can be used up to SIL 2 (IEC/EN 61508)

Ambient Conditions

  • Ambient temperature - -20 °C ... +70 °C (Single device) -20 °C ... +60 °C (Group assembly)
  • Ambient temperature max. - +70 °C
  • Ambient temperature max. note - Single device
  • Ambient temperature max. note 2 - Group assembly
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -20 °C
  • Ambient temperature min. 2 - -20 °C
  • Ambient temperature min. note - Single device
  • Ambient temperature min. note 2 - Group assembly
  • Electromagnetic compatibility - Tested to the following standards and regulations: EN 61326-1 Use in industrial environment
  • Relative humidity max. - 95%
  • Storage temperature - -40 °C ... +80 °C
  • Storage temperature max. - +80 °C
  • Storage temperature min. - -40 °C
  • Use at the height of - < 2000 m

Auxiliary power

  • Auxiliary power - 24 V DC
  • Auxiliary power voltage range - 18,0 - 31,2 V
  • Nominal current - 90.00 mA
  • Nominal voltage - 24 V DC
  • Polarity reversal protection - yes
  • Power consumption - 2.20 W
  • Power dissipation max. - 1.80 W
  • Voltage range residual ripple - ≤ 3,6 VSS

Electrical Data

  • Number of channels - 2
  • Open-circuit voltage U a - 0,00 V

Explosion Protection

  • Application range (zones) - 22
  • ATEX dust certificate - DMT 03 ATEX E 012 X
  • ATEX gas certificate - DMT 03 ATEX E 012 X
  • Certificate EAC - TS RU S-DE.GB04.B.00353
  • Certificates - ATEX (BVS), Canada (FM), EAC (STV), IECEx (BVS), India (PESO), Korea (KTL), Russia (Meteorological certificate), SIL (exida), USA (FM)
  • Dust explosion protection ATEX - II (1) D [Ex ia Da] IIIC
  • Dust explosion protection EAC - [Ex ia Da] IIIC
  • Dust explosion protection IECEx - [Ex ia Da] IIIC
  • Ex interface in Division NEC 500 - (Class I, II, III) 1, 2
  • Ex interface zone - 0, 1, 2, 20, 21, 22
  • Gas explosion protection ATEX - II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc
  • Gas explosion protection EAC - 2 Ex nA nC [ia Ga] IIC T4 Gc X
  • Gas explosion protection IECEx - Ex nA nC [ia Ga] IIC T4 Gc
  • IECEX dust certificate - IECEx BVS 10.0011 X
  • IECEX gas certificate - IECEx BVS 10.0011 X
  • Installation in Division NEC 500 - (Class I, II, III) 2
  • Ship approval - CCS, DNVGL

General

  • Functional Description - 9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
  • Highlights - Compact one- and two-channel Ex i output isolating repeater wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact can be used up to SIL 2 (IEC/EN 61508)
  • Product Description - Isolating repeater Ex i field circuit ISpac
  • Product Type - 9165/26-11-11k
  • Title Product Variant Technical Data - 9165/26-11-11k HART mA-Isolating repeat.
  • WebCode - 9165A

Input

  • Input - 0/4 ... 20 mA with HART
  • Input functional range - 0 - 24 mA
  • Input resistance - 175 / 400 ohms
  • input signal - 0/4 - 20 mA with HART
  • Message of line fault and Auxilliary power failure - - Contact (30 V / 100 mA) closed to ground in case of fault - pac-Bus, floating contact (30 V / 100 mA)

Mechanical Data

  • Degree of protection (IP) - IP30
  • Enclosure material - Polyamide
  • Fire resistance (UL 94) - V0
  • Grid dimension - 17.60 mm
  • Terminal degree of protection (IP) - IP20
  • Weight - 0.190 kg

Mounting / Installation

  • Connection type - Spring clamp terminal
  • Mounting position - horizontal vertical
  • Mounting type - NS35/15, NS35/7.5 DIN rail

Output

  • LFD relay - Yes
  • Load resistance R L - 0 ... 800 Ohm
  • Load resistance R L max. - 800.00 Ω
  • Output - 0/4 ... 20 mA with HART
  • Output functional range - 0.0 - 24.0 mA
  • output signal - 0/4 ... 20 mA with HART
  • Settling time 10 … 90 % - ≤ 100 µs
  • Switching capacity fault message contact - 30 V / 100 mA

Safety Data

  • Internal capacitance C i - negligible
  • Internal inductance L i - negligible
  • Max. Current I o - 96.0 mA
  • Max. permissible external capacitance C o for IIB - 0.800 μF
  • Max. permissible external capacitance C o for IIC - 0.103 μF
  • Max. permissible external inductance L o for IIB - 11.000 mH
  • Max. permissible external inductance L o for IIC - 1.900 mH
  • Max. Power P o - 605.000 mW
  • Max. Voltage U o - 25.60 V
  • Safety-related maximum voltage - 253 V
207909
207909
R. STAHL Isolating Repeater Ex I Field Circuit ISpac
Compact one- and two-channel Ex i output isolating repeater

wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact

can be used up to SIL 2 (IEC/EN 61508)

Ambient Conditions

  • Ambient temperature - -20 °C ... +70 °C (Single device) -20 °C ... +60 °C (Group assembly)
  • Ambient temperature max. - +70 °C
  • Ambient temperature max. note - Single device
  • Ambient temperature max. note 2 - Group assembly
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -20 °C
  • Ambient temperature min. 2 - -20 °C
  • Ambient temperature min. note - Single device
  • Ambient temperature min. note 2 - Group assembly
  • Electromagnetic compatibility - Tested to the following standards and regulations: EN 61326-1 Use in industrial environment
  • Relative humidity max. - 95%
  • Storage temperature - -40 °C ... +80 °C
  • Storage temperature max. - +80 °C
  • Storage temperature min. - -40 °C
  • Use at the height of - < 2000 m

Auxiliary power

  • Auxiliary power - 24 V DC
  • Auxiliary power voltage range - 18,0 - 31,2 V
  • Nominal current - 55.00 mA
  • Nominal voltage - 24 V DC
  • Polarity reversal protection - yes
  • Power consumption - 1.30 W
  • Power dissipation max. - 1.10 W
  • Voltage range residual ripple - ≤ 3,6 VSS

Electrical Data

  • Number of channels - 1
  • Open-circuit voltage U a - 0,00 V

Explosion Protection

  • Application range (zones) - 2
  • ATEX dust certificate - DMT 03 ATEX E 012 X
  • ATEX gas certificate - DMT 03 ATEX E 012 X
  • Certificate EAC - TS RU S-DE.GB04.B.00353
  • Certificates - ATEX (BVS), Canada (FM), EAC (STV), IECEx (BVS), India (PESO), Korea (KTL), Russia (Meteorological certificate), SIL (exida), USA (FM)
  • Dust explosion protection ATEX - II (1) D [Ex ia Da] IIIC
  • Dust explosion protection EAC - [Ex ia Da] IIIC
  • Dust explosion protection IECEx - [Ex ia Da] IIIC
  • Ex interface in Division NEC 500 - (Class I, II, III) 1, 2
  • Ex interface zone - 1, 2, 20, 21, 22
  • Gas explosion protection ATEX - II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc
  • Gas explosion protection EAC - 2 Ex nA nC [ia Ga] IIC T4 Gc X
  • Gas explosion protection IECEx - Ex nA nC [ia Ga] IIC T4 Gc
  • IECEX dust certificate - IECEx BVS 10.0011 X
  • IECEX gas certificate - IECEx BVS 10.0011 X
  • Installation in Division NEC 500 - (Class I, II, III) 2
  • Ship approval - CCS, DNVGL

General

  • Functional Description - 9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
  • Highlights - Compact one- and two-channel Ex i output isolating repeater wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact can be used up to SIL 2 (IEC/EN 61508)
  • Product Description - Isolating repeater Ex i field circuit ISpac
  • Product Type - 9165/16-11-10s
  • WebCode - 9165A

Input

  • Input - 4 ... 20 mA with HART
  • Input functional range - 4 - 24 mA
  • Input resistance - 400 ohms
  • input signal - 4 - 20 mA with HART
  • Message of line fault and Auxilliary power failure - -

Mechanical Data

  • Connection cross-section - 0.25-2.5 mm² flexible core end sleeve 0.2-2.5 mm² rigid 0.2-2.5 mm² flexible
  • Degree of protection (IP) - IP30
  • Enclosure material - Polyamide
  • Fire resistance (UL 94) - V0
  • Grid dimension - 17.60 mm
  • Terminal degree of protection (IP) - IP20
  • Weight - 0.180 kg

Mounting / Installation

  • Connection type - Screw terminal
  • Mounting position - horizontal vertical
  • Mounting type - DIN rail (NS35/15, NS35/7.5)

Output

  • LFD relay - No
  • Load resistance R L - 0 ... 800 Ohm
  • Load resistance R L max. - 800.00 Ω
  • Output - 4 ... 20 mA with HART
  • Output functional range - 4.0 - 24.0 mA
  • output signal - 4 ... 20 mA with HART
  • Settling time 10 … 90 % - ≤ 100 µs

Safety Data

  • Internal capacitance C i - negligible
  • Internal inductance L i - negligible
  • Max. Current I o - 96.0 mA
  • Max. permissible external capacitance C o for IIB - 0.800 μF
  • Max. permissible external capacitance C o for IIC - 0.103 μF
  • Max. permissible external inductance L o for IIB - 11.000 mH
  • Max. permissible external inductance L o for IIC - 1.900 mH
  • Max. Power P o - 605.000 mW
  • Max. Voltage U o - 25.60 V
  • Safety-related maximum voltage - 253 V
207910
207910
R. STAHL Isolating Repeater Ex I Field Circuit ISpac
Compact one- and two-channel Ex i output isolating repeater

wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact

can be used up to SIL 2 (IEC/EN 61508)

Ambient Conditions

  • Ambient temperature - -20 °C ... +70 °C (Single device) -20 °C ... +60 °C (Group assembly)
  • Ambient temperature max. - +70 °C
  • Ambient temperature max. note - Single device
  • Ambient temperature max. note 2 - Group assembly
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -20 °C
  • Ambient temperature min. 2 - -20 °C
  • Ambient temperature min. note - Single device
  • Ambient temperature min. note 2 - Group assembly
  • Electromagnetic compatibility - Tested to the following standards and regulations: EN 61326-1 Use in industrial environment
  • Relative humidity max. - 95%
  • Storage temperature - -40 °C ... +80 °C
  • Storage temperature max. - +80 °C
  • Storage temperature min. - -40 °C
  • Use at the height of - < 2000 m

Auxiliary power

  • Auxiliary power - 24 V DC
  • Auxiliary power voltage range - 18,0 - 31,2 V
  • Nominal current - 90.00 mA
  • Nominal voltage - 24 V DC
  • Polarity reversal protection - yes
  • Power consumption - 2.20 W
  • Power dissipation max. - 1.80 W
  • Voltage range residual ripple - ≤ 3,6 VSS

Electrical Data

  • Number of channels - 2
  • Open-circuit voltage U a - 0,00 V

Explosion Protection

  • Application range (zones) - 22
  • ATEX dust certificate - DMT 03 ATEX E 012 X
  • ATEX gas certificate - DMT 03 ATEX E 012 X
  • Certificate EAC - TS RU S-DE.GB04.B.00353
  • Certificates - ATEX (BVS), Canada (FM), EAC (STV), IECEx (BVS), India (PESO), Korea (KTL), Russia (Meteorological certificate), SIL (exida), USA (FM)
  • Dust explosion protection ATEX - II (1) D [Ex ia Da] IIIC
  • Dust explosion protection EAC - [Ex ia Da] IIIC
  • Dust explosion protection IECEx - [Ex ia Da] IIIC
  • Ex interface in Division NEC 500 - (Class I, II, III) 1, 2
  • Ex interface zone - 1, 2, 20, 21, 22
  • Gas explosion protection ATEX - II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc
  • Gas explosion protection EAC - 2 Ex nA nC [ia Ga] IIC T4 Gc X
  • Gas explosion protection IECEx - Ex nA nC [ia Ga] IIC T4 Gc
  • IECEX dust certificate - IECEx BVS 10.0011 X
  • IECEX gas certificate - IECEx BVS 10.0011 X
  • Installation in Division NEC 500 - (Class I, II, III) 2
  • Ship approval - CCS, DNVGL

General

  • Functional Description - 9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
  • Highlights - Compact one- and two-channel Ex i output isolating repeater wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact can be used up to SIL 2 (IEC/EN 61508)
  • Product Description - Isolating repeater Ex i field circuit ISpac
  • Product Type - 9165/26-11-10s
  • Title Product Variant Technical Data - 9165/26-11-10s HART mA-Isolating repeat.
  • WebCode - 9165A

Input

  • Input - 4 ... 20 mA with HART
  • Input functional range - 4 - 24 mA
  • Input resistance - 400 ohms
  • input signal - 4 - 20 mA with HART
  • Message of line fault and Auxilliary power failure - -

Mechanical Data

  • Connection cross-section - 0.2-2.5 mm² flexible 0.2-2.5 mm² rigid 0.25-2.5 mm² flexible core end sleeve
  • Degree of protection (IP) - IP30
  • Enclosure material - Polyamide
  • Fire resistance (UL 94) - V0
  • Grid dimension - 17.60 mm
  • Terminal degree of protection (IP) - IP20
  • Weight - 0.200 kg

Mounting / Installation

  • Connection type - Screw terminal
  • Mounting position - horizontal vertical
  • Mounting type - DIN rail (NS35/15, NS35/7.5)

Output

  • LFD relay - No
  • Load resistance R L - 0 ... 800 Ohm
  • Load resistance R L max. - 800.00 Ω
  • Output - 4 ... 20 mA with HART
  • Output functional range - 4.0 - 24.0 mA
  • output signal - 4 ... 20 mA with HART
  • Settling time 10 … 90 % - ≤ 100 µs

Safety Data

  • Internal capacitance C i - negligible
  • Internal inductance L i - negligible
  • Max. Current I o - 96.0 mA
  • Max. permissible external capacitance C o for IIB - 0.800 μF
  • Max. permissible external capacitance C o for IIC - 0.103 μF
  • Max. permissible external inductance L o for IIB - 11.000 mH
  • Max. permissible external inductance L o for IIC - 1.900 mH
  • Max. Power P o - 605.000 mW
  • Max. Voltage U o - 25.60 V
  • Safety-related maximum voltage - 253 V
220396
220396
R. STAHL Isolating Repeater Ex I Field Circuit ISpac
Compact one- and two-channel Ex i output isolating repeater

wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact

can be used up to SIL 2 (IEC/EN 61508)

Ambient Conditions

  • Ambient temperature - -20 °C ... +70 °C (Single device) -20 °C ... +60 °C (Group assembly)
  • Ambient temperature max. - +70 °C
  • Ambient temperature max. note - Single device
  • Ambient temperature max. note 2 - Group assembly
  • Ambient temperature max.2 - +60 °C
  • Ambient temperature min. - -20 °C
  • Ambient temperature min. 2 - -20 °C
  • Ambient temperature min. note - Single device
  • Ambient temperature min. note 2 - Group assembly
  • Electromagnetic compatibility - Tested to the following standards and regulations: EN 61326-1 Use in industrial environment
  • Relative humidity max. - 95%
  • Storage temperature - -40 °C ... +80 °C
  • Storage temperature max. - +80 °C
  • Storage temperature min. - -40 °C
  • Use at the height of - < 2000 m

Auxiliary power

  • Auxiliary power - 24 V DC
  • Auxiliary power voltage range - 18,0 - 31,2 V
  • Nominal current - 90.00 mA
  • Nominal voltage - 24 V DC
  • Polarity reversal protection - yes
  • Power consumption - 2.20 W
  • Power dissipation max. - 1.80 W
  • Voltage range residual ripple - ≤ 3,6 VSS

Electrical Data

  • Number of channels - 2
  • Open-circuit voltage U a - 0,00 V

Explosion Protection

  • Application range (zones) - 22
  • ATEX dust certificate - DMT 03 ATEX E 012 X
  • ATEX gas certificate - DMT 03 ATEX E 012 X
  • Certificate EAC - TS RU S-DE.GB04.B.00353
  • Certificates - ATEX (BVS), Canada (FM), EAC (STV), IECEx (BVS), India (PESO), Korea (KTL), Russia (Meteorological certificate), SIL (exida), USA (FM)
  • Dust explosion protection ATEX - II (1) D [Ex ia Da] IIIC
  • Dust explosion protection EAC - [Ex ia Da] IIIC
  • Dust explosion protection IECEx - [Ex ia Da] IIIC
  • Ex interface in Division NEC 500 - (Class I, II, III) 1, 2
  • Ex interface zone - 0, 1, 2, 20, 21, 22
  • Gas explosion protection ATEX - II 3 (1) G Ex nA nC [ia Ga] IIC T4 Gc
  • Gas explosion protection EAC - 2 Ex nA nC [ia Ga] IIC T4 Gc X
  • Gas explosion protection IECEx - Ex nA nC [ia Ga] IIC T4 Gc
  • IECEX dust certificate - IECEx BVS 10.0011 X
  • IECEX gas certificate - IECEx BVS 10.0011 X
  • Installation in Division NEC 500 - (Class I, II, III) 2
  • Ship approval - CCS, DNVGL

General

  • Functional Description - 9165 series Ex i isolating repeaters can be used for the intrinsically safe operation of control valves, I/P transducers or indicators. They transmit superimposed HART communication signals in both directions. The input, output and auxiliary power are galvanically separated from one another. The two channels in the two-channel variants are galvanically separated from one another.
  • Highlights - Compact one- and two-channel Ex i output isolating repeater wire-breakage and short-circuit monitoring system, which can be disconnected and features a signalling contact can be used up to SIL 2 (IEC/EN 61508)
  • Product Description - Isolating repeater Ex i field circuit ISpac
  • Product Type - 9165/26-11-10k
  • Title Product Variant Technical Data - 9165/26-11-10k HART mA-Isolating repeat.
  • WebCode - 9165A

Input

  • Input - 4 ... 20 mA with HART
  • Input functional range - 4 - 24 mA
  • Input resistance - 400 ohms
  • input signal - 4 - 20 mA with HART

Mechanical Data

  • Degree of protection (IP) - IP30
  • Enclosure material - Polyamide
  • Fire resistance (UL 94) - V0
  • Grid dimension - 17.60 mm
  • Terminal degree of protection (IP) - IP20
  • Weight - 0.200 kg

Mounting / Installation

  • Connection type - Spring clamp terminal
  • Mounting position - horizontal vertical
  • Mounting type - NS35/15, NS35/7.5 DIN rail

Output

  • LFD relay - No
  • Load resistance R L - 0 ... 800 Ohm
  • Load resistance R L max. - 800.00 Ω
  • Output - 4 ... 20 mA with HART
  • Output functional range - 4.0 - 24.0 mA
  • output signal - 4 ... 20 mA with HART
  • Settling time 10 … 90 % - ≤ 100 µs

Safety Data

  • Internal capacitance C i - negligible
  • Internal inductance L i - negligible
  • Max. Current I o - 96.0 mA
  • Max. permissible external capacitance C o for IIB - 0.800 μF
  • Max. permissible external capacitance C o for IIC - 0.103 μF
  • Max. permissible external inductance L o for IIB - 11.000 mH
  • Max. permissible external inductance L o for IIC - 1.900 mH
  • Max. Power P o - 605.000 mW
  • Max. Voltage U o - 25.60 V
  • Safety-related maximum voltage - 253 V
1 - 7 of 7 Part Numbers
Instantly populate your store or catalog
CREATE YOUR SITE
or book a demo with the Yodify Team
show more
